CX-9 AWD V6-3.7L (2008)

Page 1
background image

Flex Plate: Specifications

Drive Plate

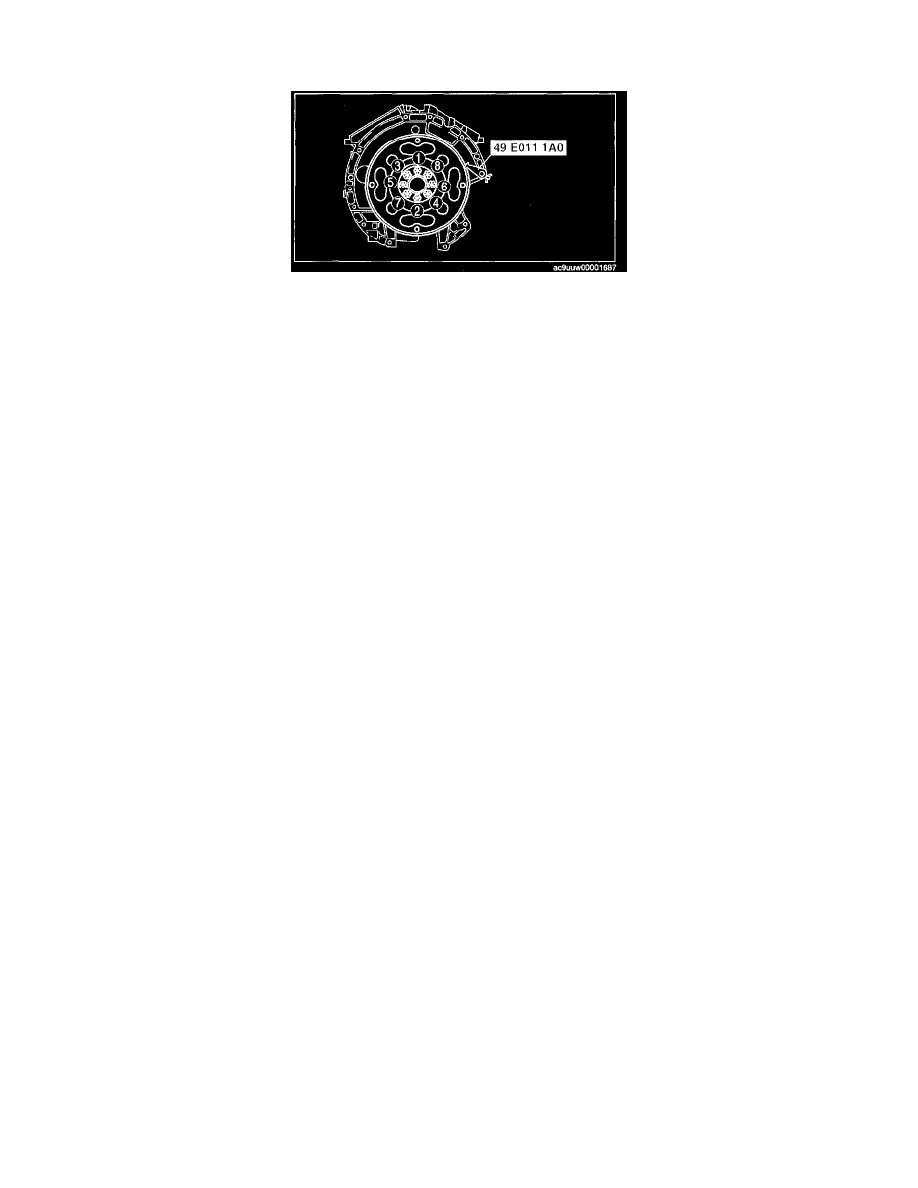

Tighten the new drive plate mounting bolts in two or three steps in the order shown.
Tightening torque
Tighten to .....................................................................................................................................................  73 - 87 Nm (7.5 - 8.8 kgf-m, 53.9 - 64.1 ft-lbf)
