MX-5 Miata L4-1.8L DOHC (1996)
Drive Belt: Specifications
A/C Belt Tension and Deflection
A/C Belt Tension and Deflection
Deflection
New
22 lbf at 0.32 To 0.35 in
When checking drive belt deflection, install belt, then
A belt that has been on a running engine for less than five
apply lb of pressure to belt a. Adjust belt to proper
minutes
deflection and tighten mounting bolts.
Used
22 lbf at 0.36 To 0.39 in
Tension
New
110 to 132 lbf
When checking drive belt tension, install belt and adjust
A belt that has been on a running engine for less than five
to proper specification using a tension gauge.
minutes
Used
95 To 110 lbf

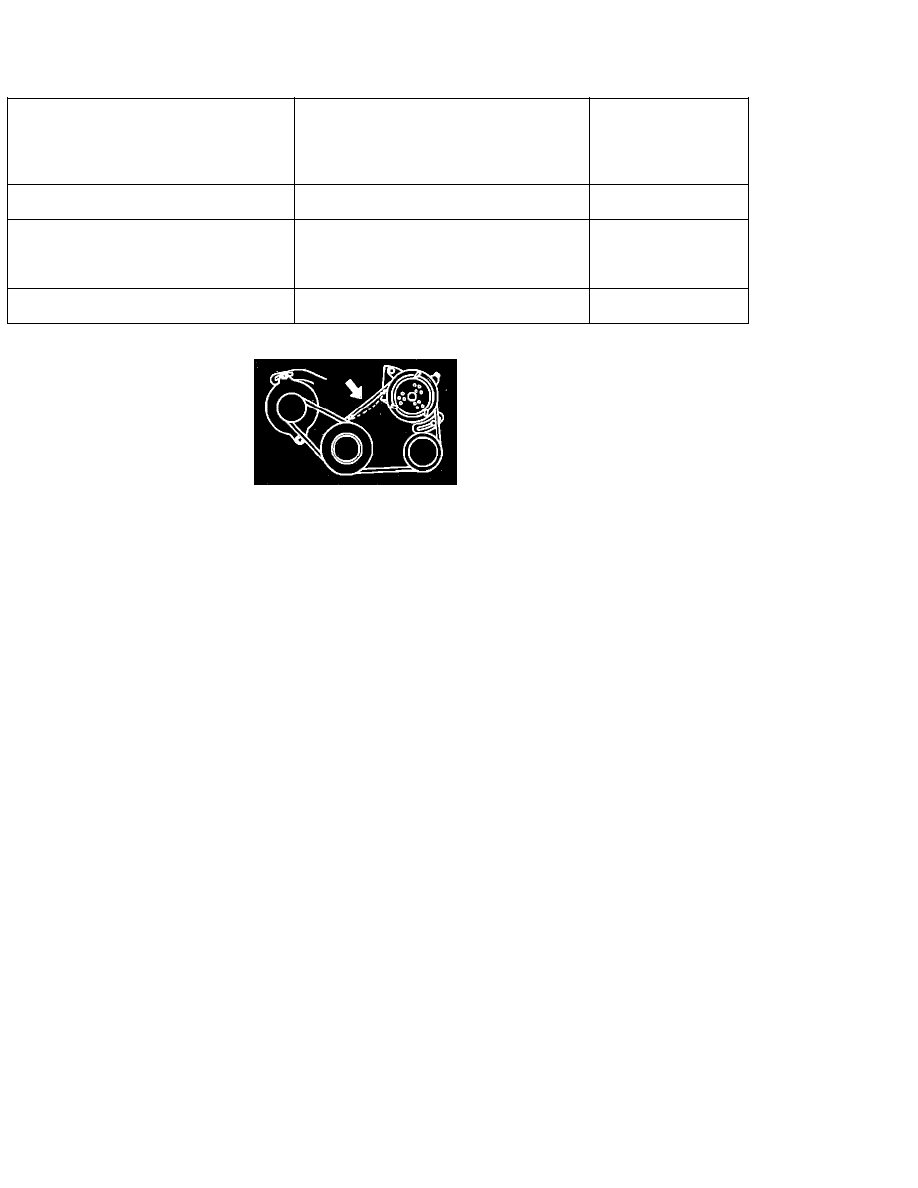

Fig. 13 Belt Routing
