MX-5 Miata L4-2.0L (2008)

Page 1
background image

Flex Plate: Specifications

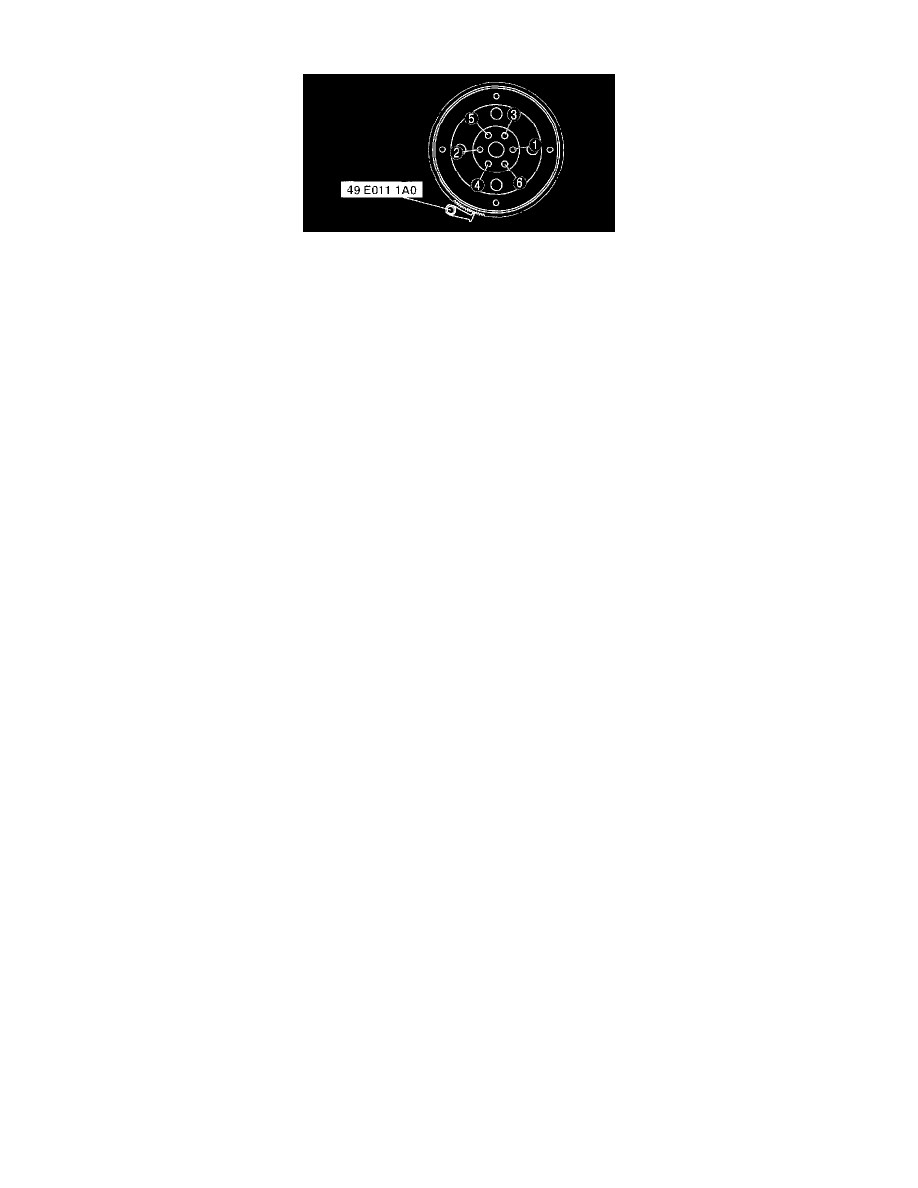

Tighten the drive plate mounting bolts in two or three steps in the order as shown in the figure.

Tightening torque 108 - 116 Nm (11.0 - 11.8 kegs-cm, 79.7 - 85.5 ft. lbs.)
