MX-5 Miata L4-2.0L (2008)
Wiper Arm: Adjustments
WIPER ARM AND BLADE ADJUSTMENT
1. Operate the wipers, and then turn off the wiper motor to set the wipers in the park position.

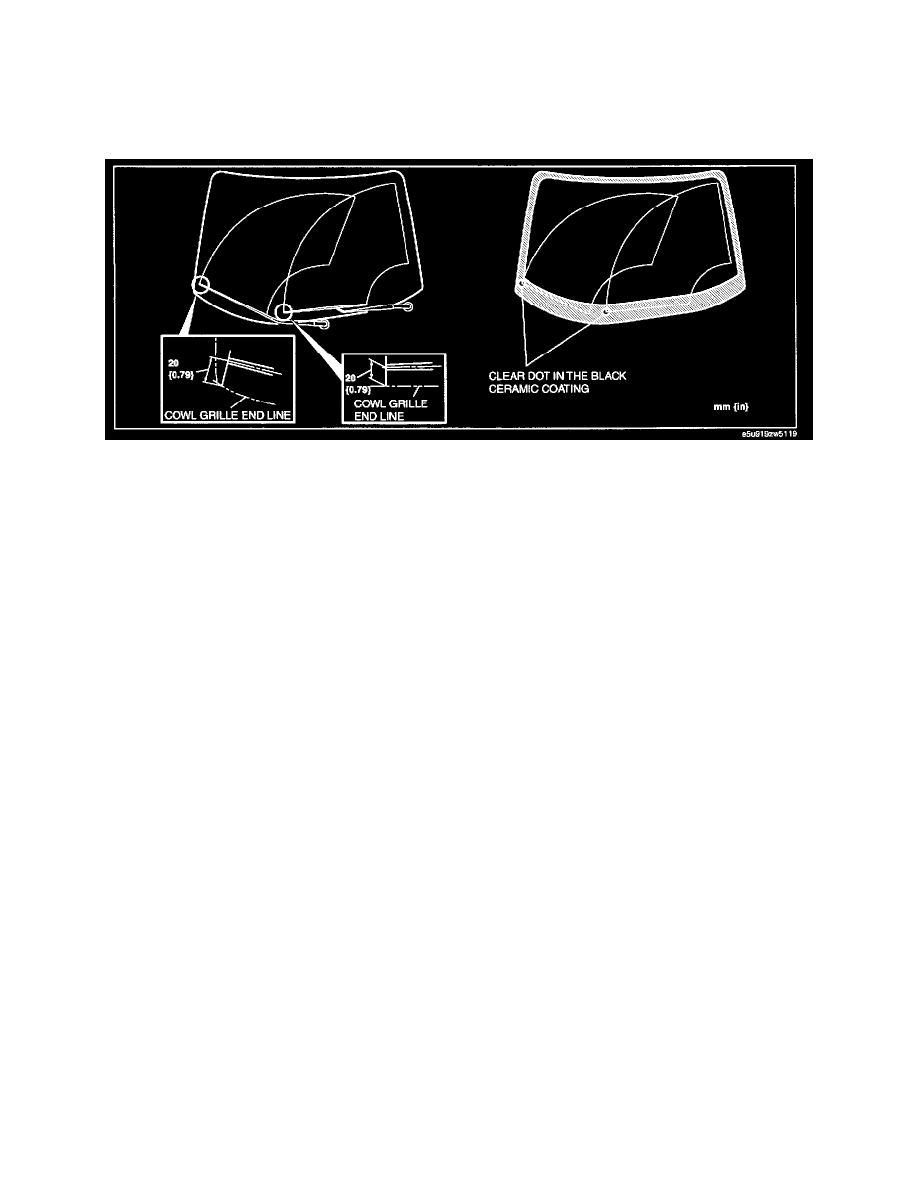

2. Slide the serrated connecting part and adjust the wiper arm and blade so that its end is aligned with the clear dot in the black ceramic coating on
the inside of the windshield.
NOTE: If the hollowed mark in the ceramic coating cannot be located, measure the distance from the cowl grille end line, and adjust the wiper
arm and blade.
