RX8 2RTR-1.3L (2006)
Alignment: Service and Repair
Front Wheel Alignment
Specification (Unloaded Condition)
Specification (Unloaded Condition)

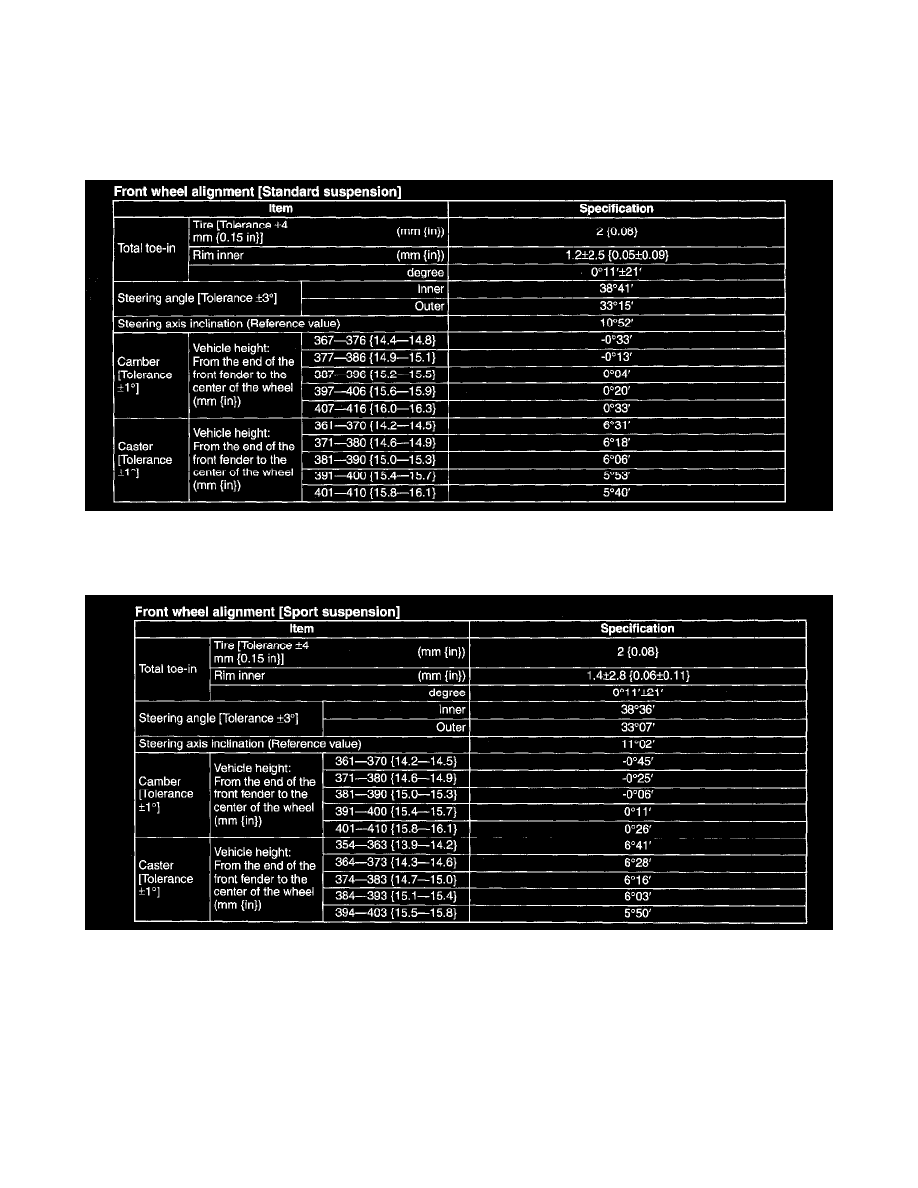

Front wheel alignment [Standard suspension]
Front Wheel Alignment [Standard Suspension]
Front wheel alignment [Sport suspension]
Front Wheel Alignment [Sport Suspension]
Note:
^
Unloaded vehicle: Fuel tank is full. Engine coolant and engine oil are at specified level. Jack and tools are in designated position.
^
Difference between the left and right dimension for camber and caster is within 1°.
Steering Angle Adjustment
Steering Angle Adjustment
1. Loosen the locknut of the tie-rod end.
2. Remove the rack boot clamp.
3. Rotate the tie rod and adjust the steering angle.
Standard steering angle [Standard suspension]
