Grille: Service and Repair

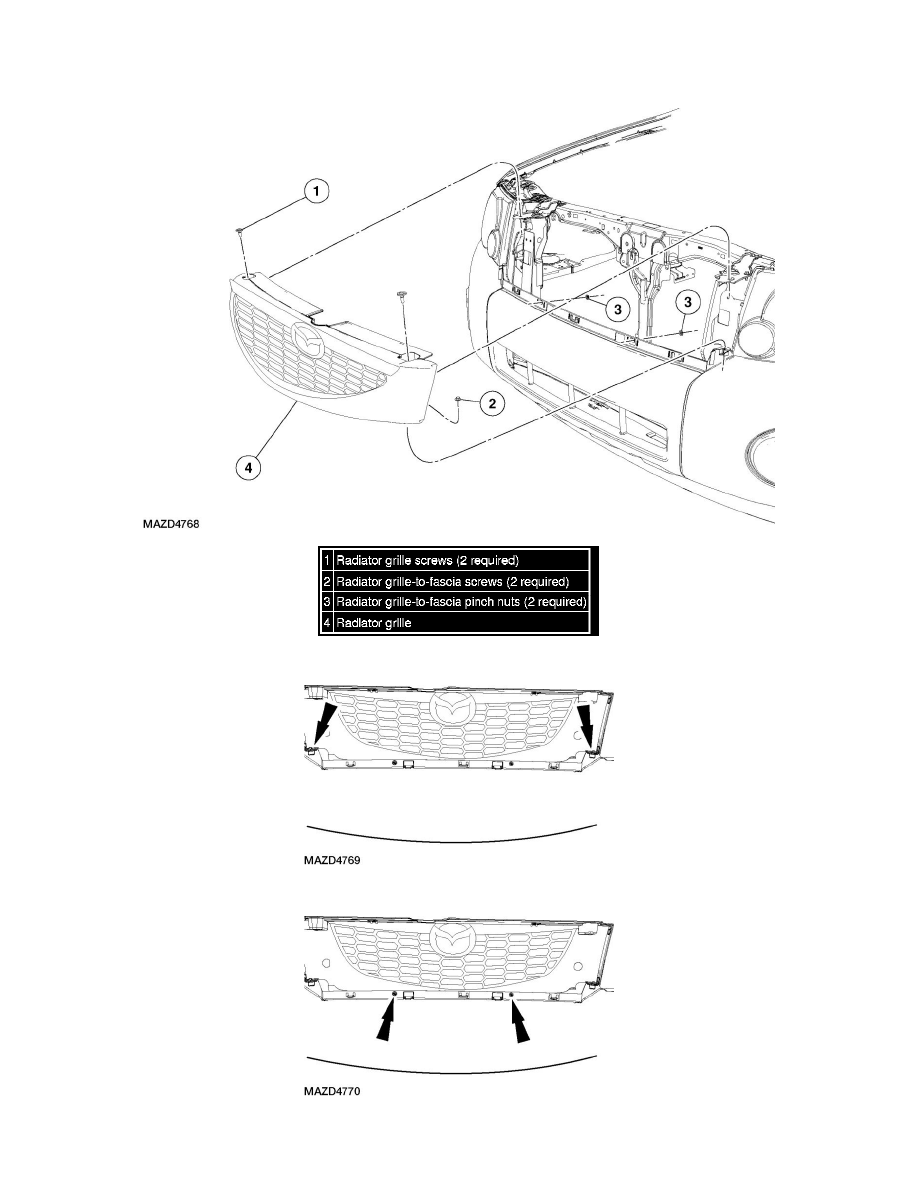

RADIATOR GRILLE REMOVAL/INSTALLATION

1. Remove the front bumper cover. See  See: Bumper/Front Bumper/Front Bumper Cover / Fascia/Service and Repair.

2. Remove the 2 radiator grille-to-fascia screws.

3. Remove the 2 radiator grille pinch nuts.
