Tribute 2WD L4-2.5L (2009)

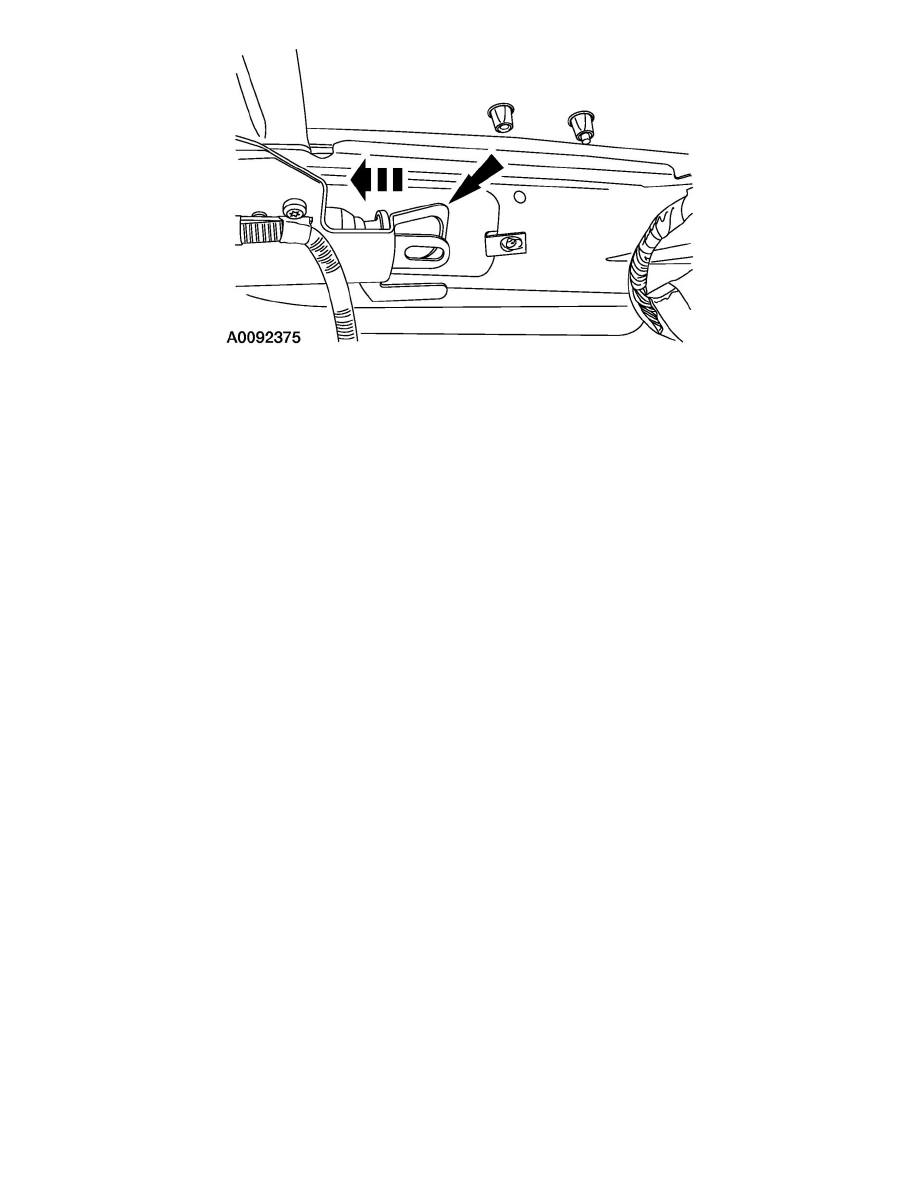

13. Move the safety canopy module forward and release the rear hook.
Installation
WARNING:Before installing a safety canopy or side air curtain module, inspect the roofline for any damage. If necessary, the sheet metal must be
reworked to its original condition and structural integrity. Install new fasteners if damaged and remove foreign material. Failure to follow these
instructions may result in the safety canopy or side air curtain deploying incorrectly, which increases the risk of serious personal injury or death in a
crash.
WARNING:Make sure no one is in the vehicle and there is nothing blocking or placed in front of any air bag module when the battery is connected.
Failure to follow these instructions may result in serious personal injury in the event of an accidental deployment.
WARNING:Do not obstruct or place objects in the deployment path of the safety canopy or side air curtain module. Failure to follow this instruction
may result in the safety canopy or side air curtain module deploying incorrectly and increases the risk of serious personal injury or death in a crash.
WARNING:Never put any type of fastener or tie strap around any part of a safety canopy module, side air curtain or interior trim panel. This will
prevent the safety canopy or side air curtain module from deploying correctly. Failure to follow this instruction may increase the risk of serious personal
injury or death in a crash.
WARNING:When installing a new headliner on a vehicle equipped with safety canopy or side air curtain modules, make sure the headliner has the word
AIRBAG on the headliner where it meets each B-pillar trim panel. Otherwise, you have the wrong headliner. Failure to follow this instruction may result
in the safety canopy or side air curtain module not deploying or deploying incorrectly, increasing the risk of personal injury or death in a crash.
WARNING:Always use new torque-prevailing type J-nuts when installing the safety canopy in the vehicle. Use of these J-nuts is mandatory to reduce
the risk of loss of fastener effectiveness. Failure to follow this instruction may result in the safety canopy module deploying incorrectly and increases the
risk of serious personal injury or death in a crash.
