Tribute 2WD L4-2.5L (2009)
Flex Plate: Specifications

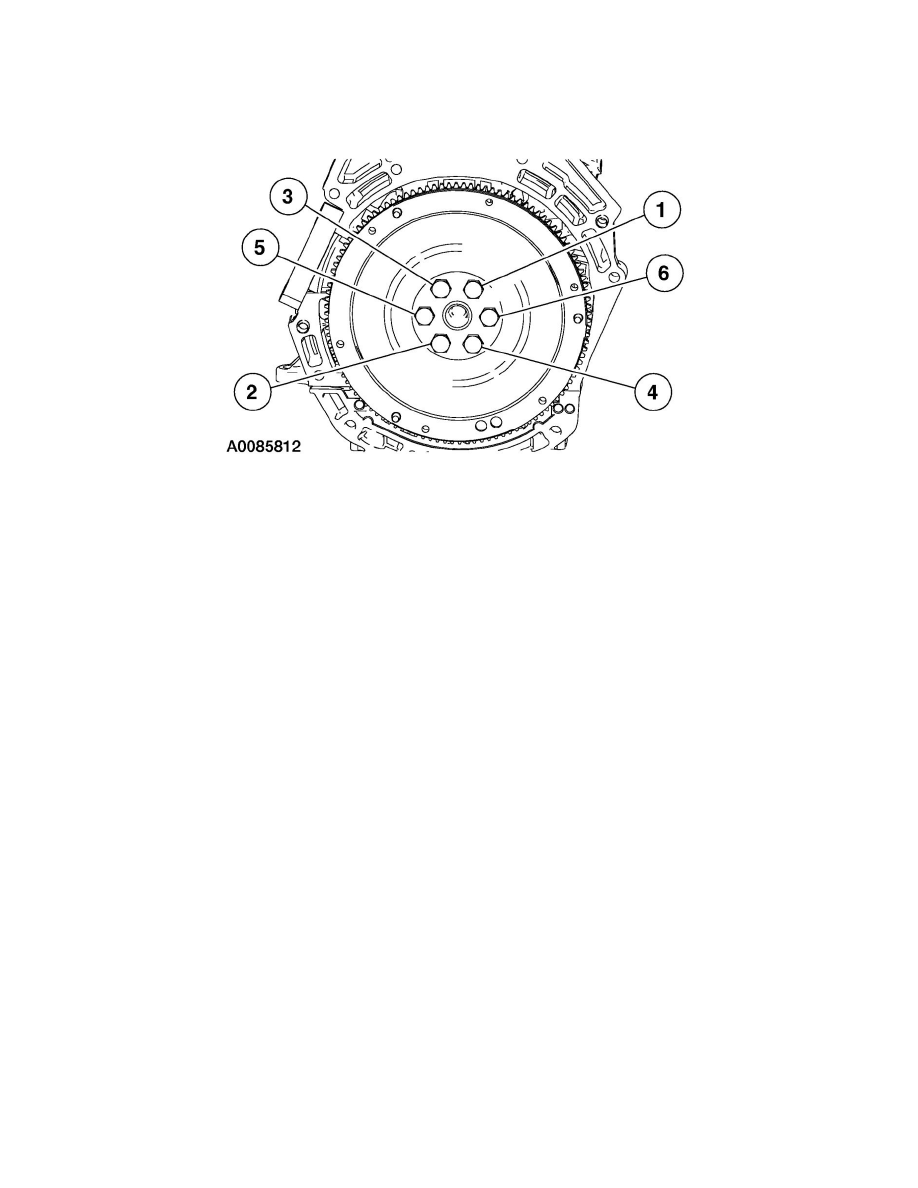

Install the flexplate and tighten the bolts in the sequence shown in 3 stages.
Stage 1:.....................................................................................................................................................................Tighten to 50 Nm {5.1 kgf-m, 37 ft-lbf}.
Stage 2:.....................................................................................................................................................................Tighten to 80 Nm {8.2 kgf-m, 59 ft-lbf}.
Stage 3:.................................................................................................................................................................Tighten to 112 Nm {11.4 kgf-m, 83 ft-lbf}.
