Tribute 4WD L4-2.3L (2005)
Flex Plate: Specifications
Flexplate

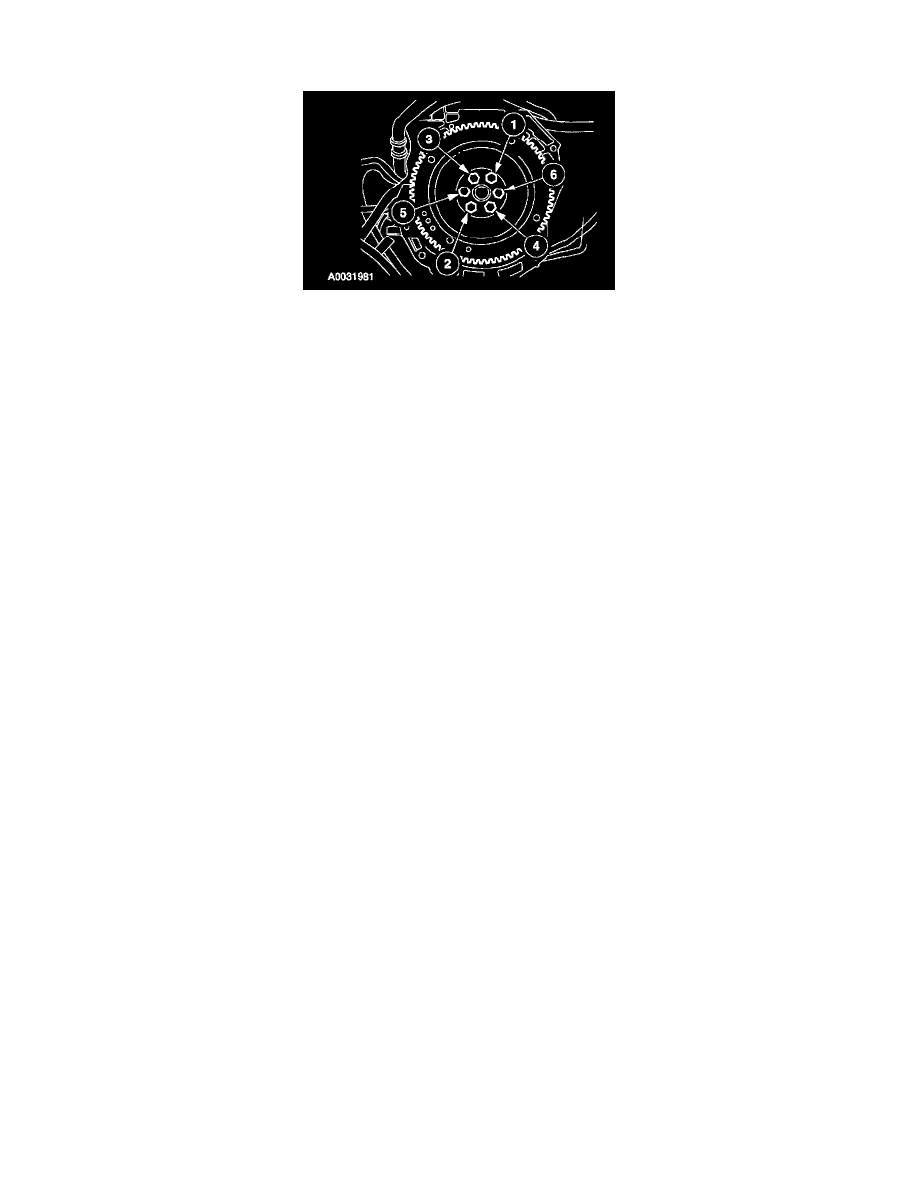

Install the flexplate and the bolts. Tighten the bolts in the sequence shown in three stages.
Stage 1 ........................................................................................................................................................ Tighten to 50 Nm (5.1 kgf-m, 37 ft. lbs.)
Stage 2 ........................................................................................................................................................ Tighten to 80 Nm (8.2 kgf-m, 59 ft. lbs.)
Stage 3 .................................................................................................................................................... Tighten to 112 Nm (11.4 kgf-m, 83 ft. lbs.)
