Tribute 4WD L4-2.3L Hybrid (2008)
Flywheel: Specifications

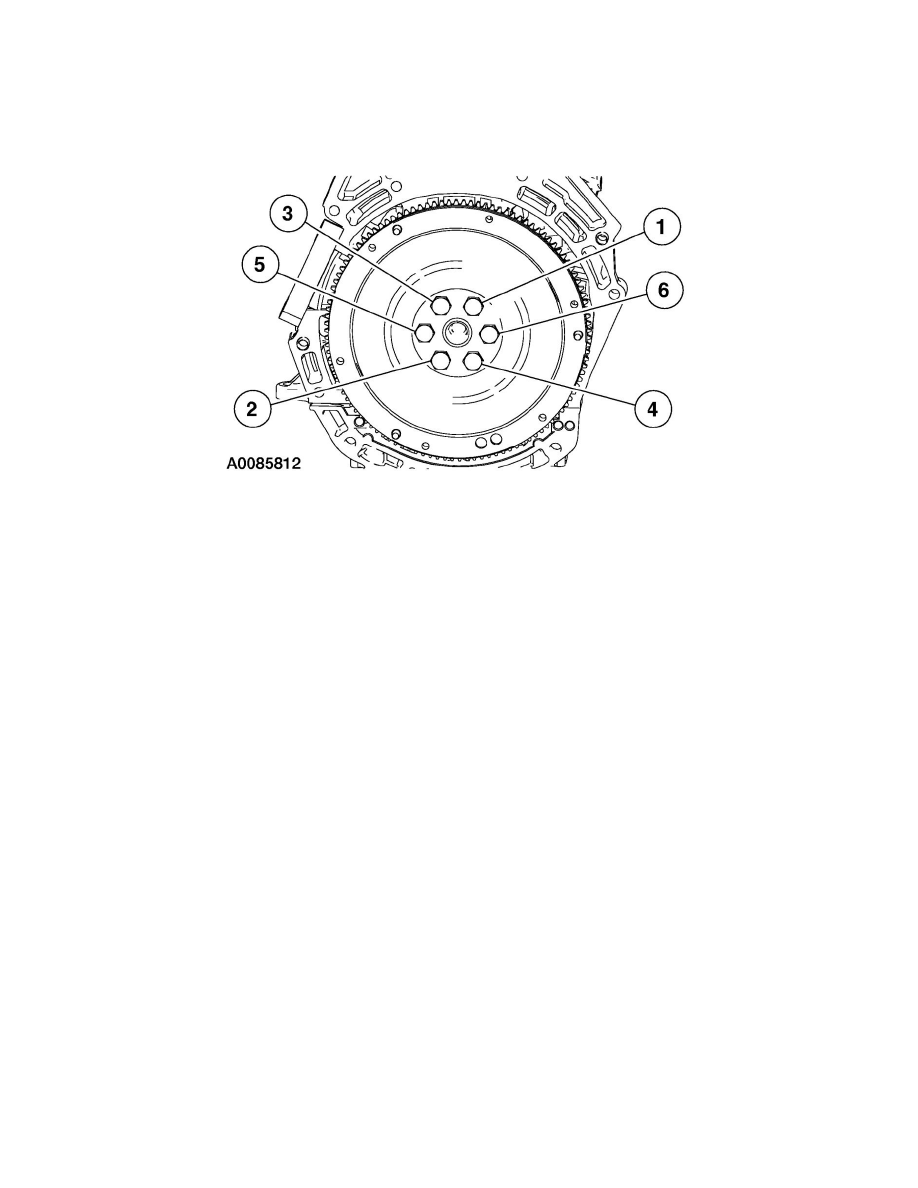

Install the flywheel and the bolts. Tighten the bolts in the sequence shown in the following 3 stages:
Stage 1:.....................................................................................................................................................................Tighten to 50 Nm {5.0 kgf-m, 37 ft-lbf}.
Stage 2:.....................................................................................................................................................................Tighten to 80 Nm {8.0 kgf-m, 59 ft-lbf}.
Stage 3:.................................................................................................................................................................Tighten to 112 Nm {11.2 kgf-m, 83 ft-lbf}.
