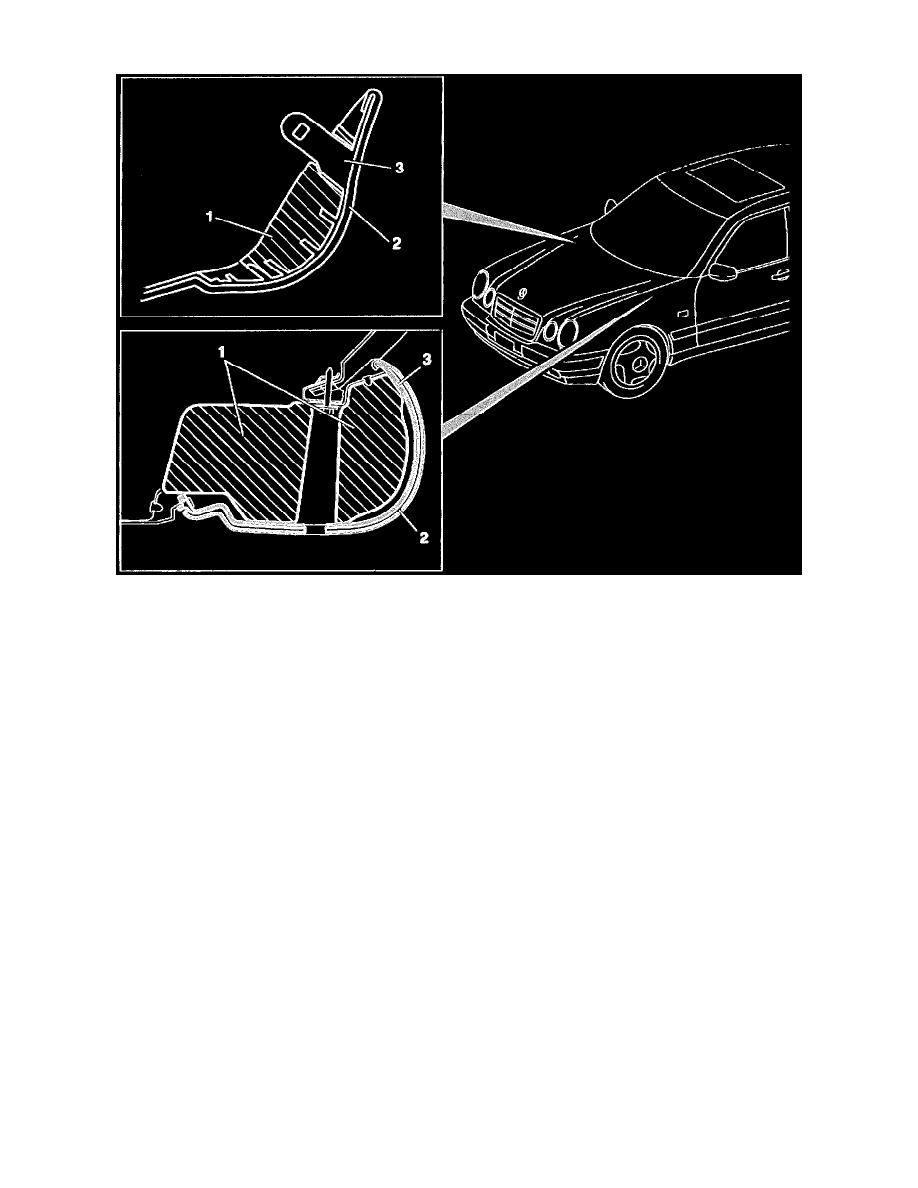

Knee Diverter: Locations

Model 210 Shown

1  Hard foam filling
2

Plastic cover with foam insert

3

Sheet metal panel

The energy absorbing coverings are located in the knee area of the driver and front seat passenger.
