Alignment (Alignment Specs): Specifications

Make: Mercedes Benz
Model: C Class CLS 550 (219.372)
Engine: V8-5.5L (273.960)
Year: 2007
Section: Alignment › Specifications › Alignment Specs

MaintenanceAlignment Specs · page 1 of 47

Alignment: Specifications
Alignment Specs

Vehicle Alignment

Vehicle Level

Front Axle with steel suspension (Standard) .............................................................................................................................................. +2.3° ±1.5°
Front Axle with AIRmatic (code 489) ........................................................................................................................................................ +3.6° ±1.5°
Maximum deviation between left & right:

When checking .................................................................................................................................................................................................... 1°
When calibrating w/Star Diagnosis .................................................................................................................................................................. 0.5°

Rear Axle with steel suspension (Standard) ................................................................................................................................................ -0.6° ±1.0°
Rear Axle with AIRmatic (code 489) .......................................................................................................................................................... -1.0° ±1.0°
Maximum deviation between left & right:

NOTE:

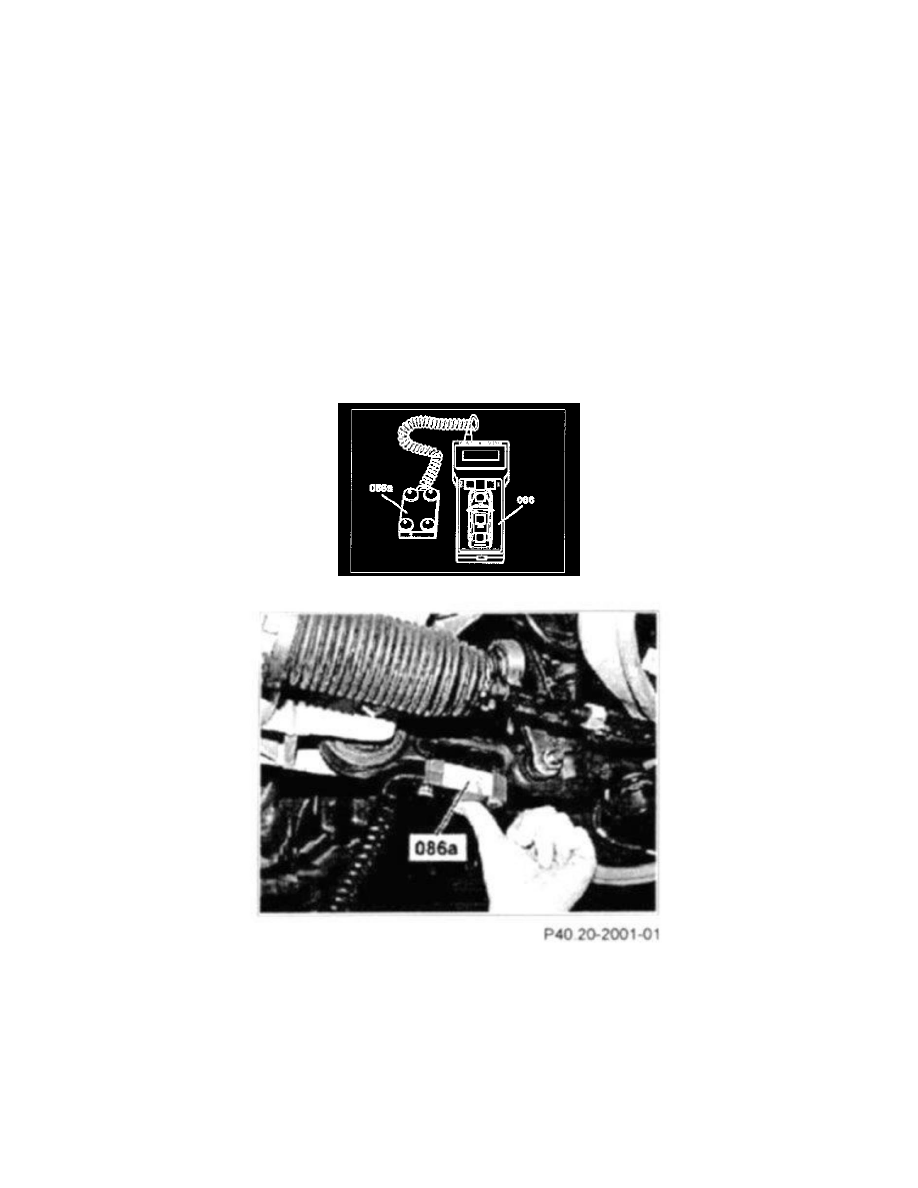

To measure vehicle level use (86) Electronic inclination measuring instrument (CM 9606)
