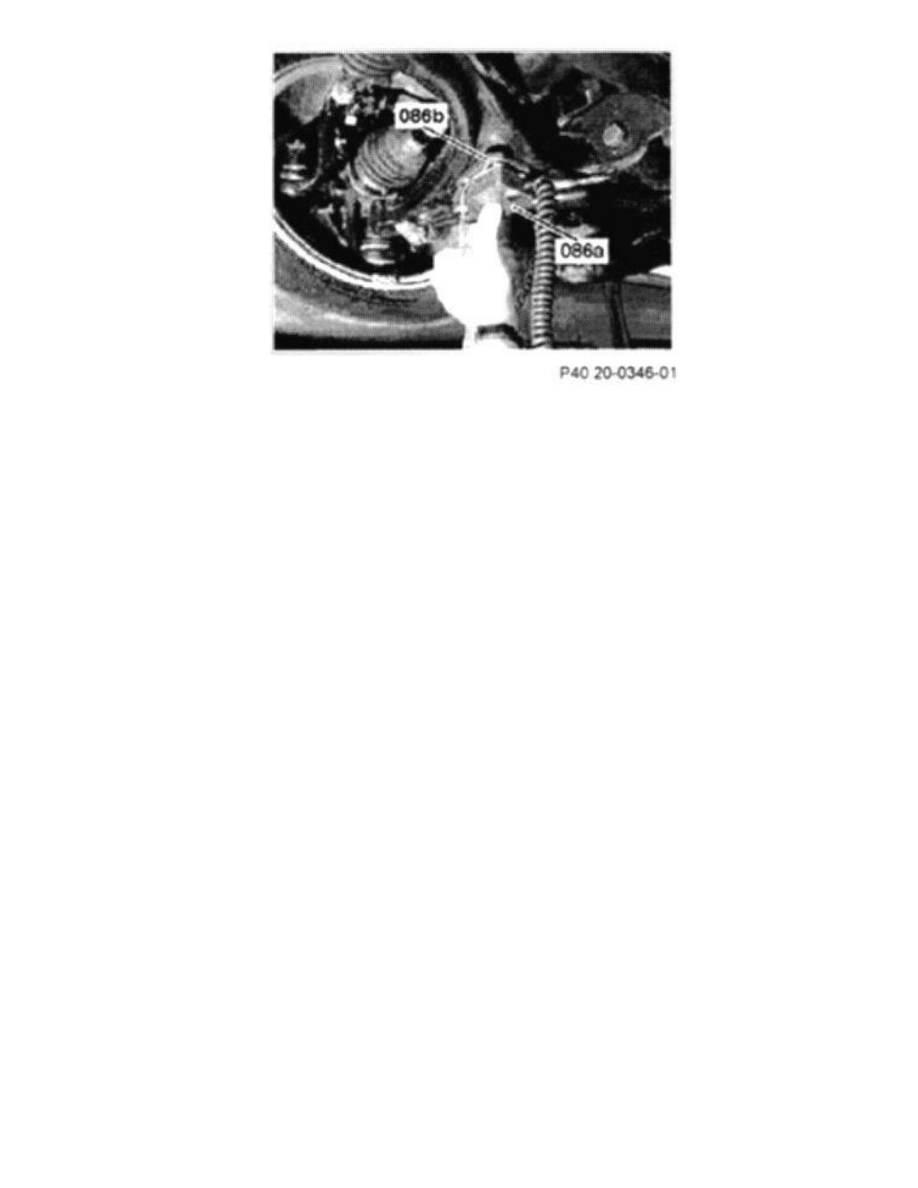

Front

Front Camber (at vehicle level)

Model 163.174

3.0° .............................................................................................................................................................................................................. -0°24' ±30'
3.2° .............................................................................................................................................................................................................. -0°24' ±30'
3.4° .............................................................................................................................................................................................................. -0°25' ±30'
3.6° .............................................................................................................................................................................................................. -0°26' ±30'
3.8° .............................................................................................................................................................................................................. -0°26' ±30'
4.0° .............................................................................................................................................................................................................. -0°27' ±30'
4.2° .............................................................................................................................................................................................................. -0°28' ±30'
4.4° .............................................................................................................................................................................................................. -0°29' ±30'
4.6° .............................................................................................................................................................................................................. -0°29' ±30'
4.8° .............................................................................................................................................................................................................. -0°30' ±30'
5.0° .............................................................................................................................................................................................................. -0°31' ±30'
Maximum left to right deviation ............................................................................................................................................................................... 20'

Models 163.113/128/136/154/157/172/175

5.4° .............................................................................................................................................................................................................. -0°33' ±30'
5.6° .............................................................................................................................................................................................................. -0°34' ±30'
5.8° .............................................................................................................................................................................................................. -0°35' ±30'
6.0° .............................................................................................................................................................................................................. -0°36' ±30'
6.2° .............................................................................................................................................................................................................. -0°37' ±30'
6.4° .............................................................................................................................................................................................................. -0°38' ±30'
6.6° .............................................................................................................................................................................................................. -0°39' ±30'
6.8° .............................................................................................................................................................................................................. -0°40' ±30'
7.0° .............................................................................................................................................................................................................. -0°41' ±30'
7.2° .............................................................................................................................................................................................................. -0°42' ±30'
Maximum left to right deviation ............................................................................................................................................................................... 20'

Front Caster
