MG MGF Circuit Diagrams (2001 model year on)05 · Instruments
05 · Electrical

Instruments

Make
MG
Model
MGF Circuit Diagrams
Year
2001 model year on
Section
Instruments › Instruments
InstrumentsInstruments

INSTRUMENTS

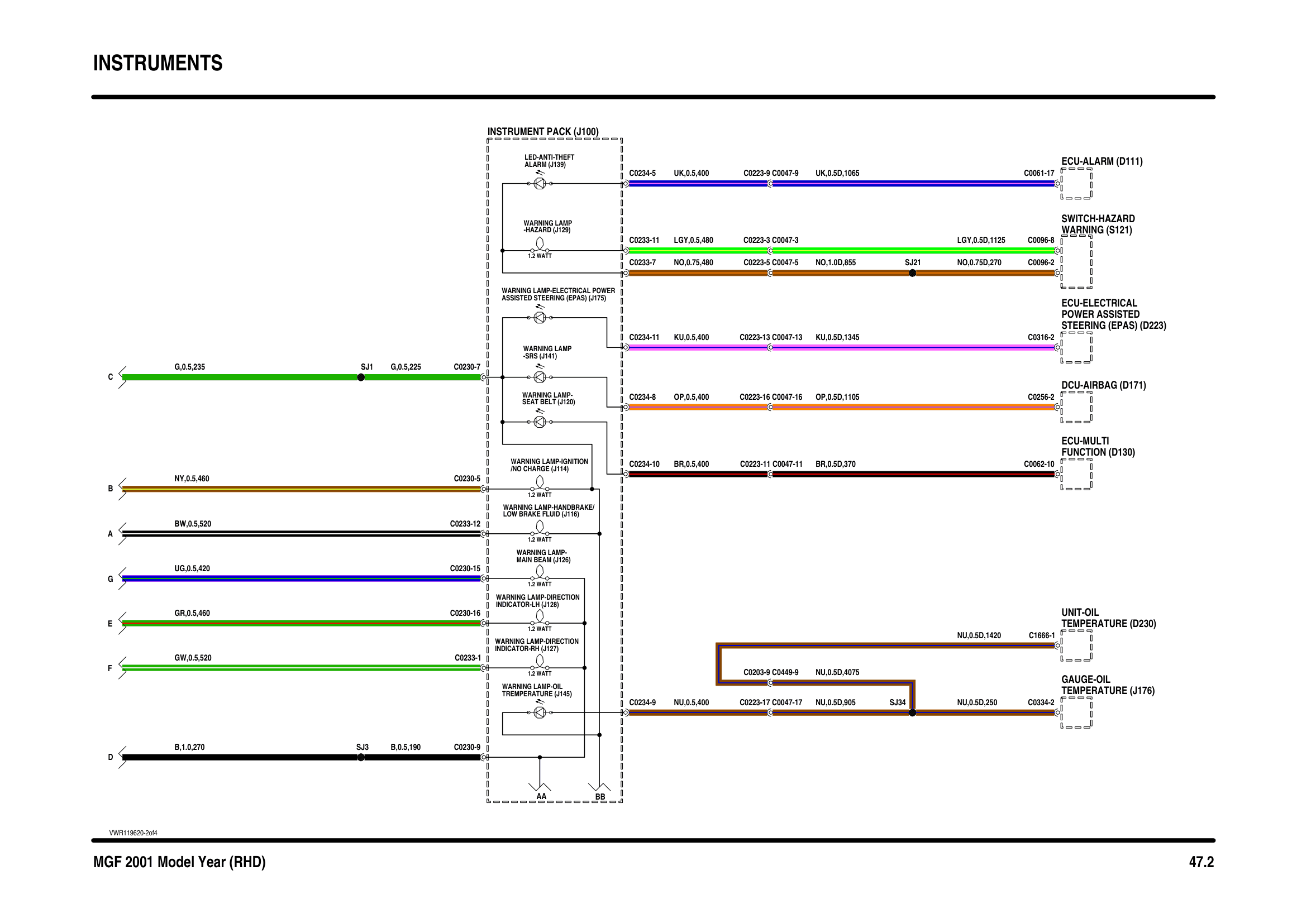

Instruments circuit diagram
