MG MGF Circuit Diagrams (up to 2001 model year)06 · Power distribution
06 · General

Power distribution

Make
MG
Model
MGF Circuit Diagrams
Year
up to 2001 model year
Section
Power distribution › Power distribution
Power distributionPower distribution

POWER DISTRIBUTION

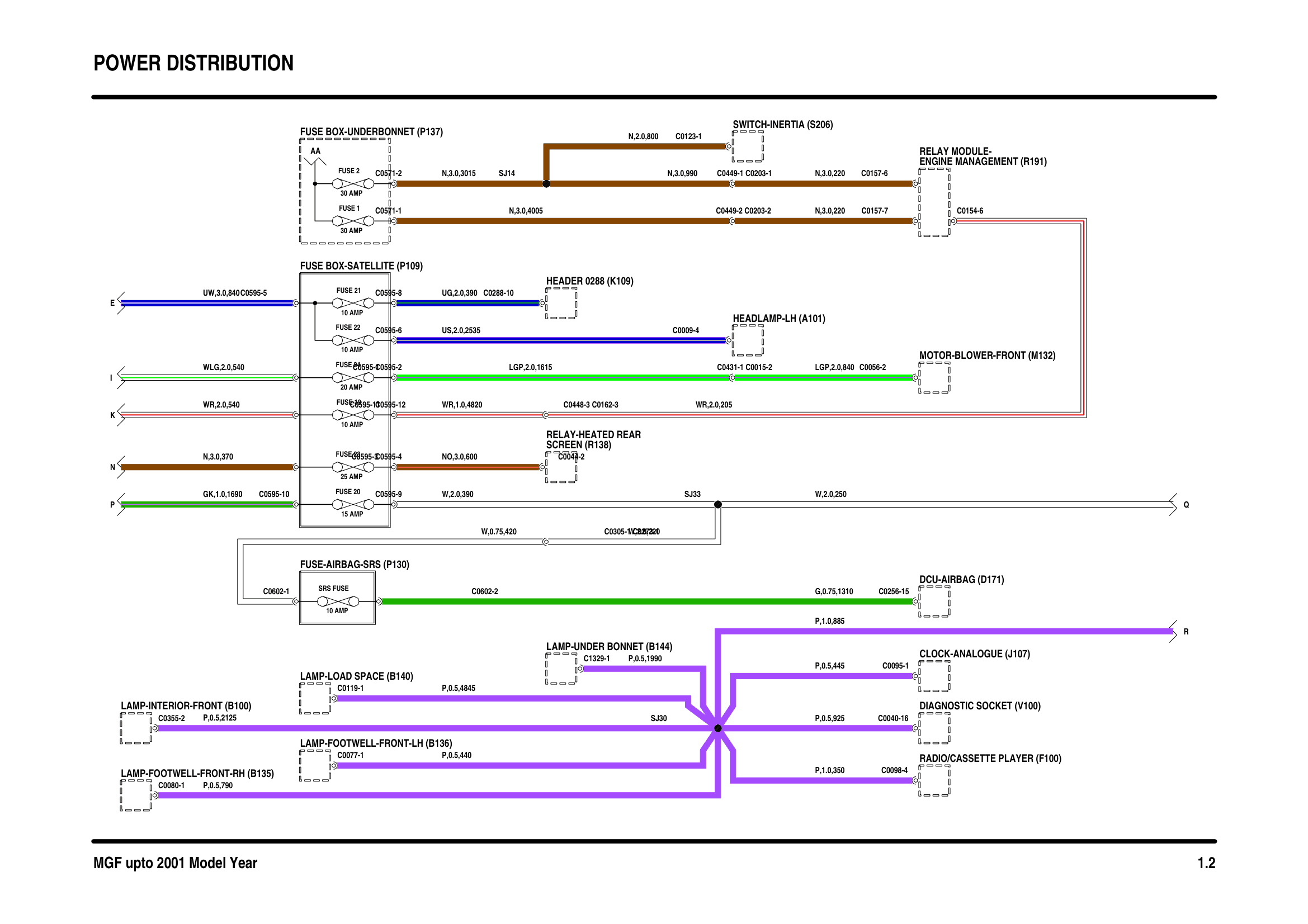

Power Distribution circuit diagram
