Workshop Manuals Factory service & repair MG
MG MGF Electrical Library (2001 model year on)05 · Connectors
05 · General

Description: Horn - RH

Make
MG
Model
MGF Electrical Library
Year
2001 model year on
Section
C0004 Horn - RH › Description: Horn - RH
ConnectorsDescription: Horn - RH
Diagram
Cav
1		Col
B		Cct
ALL
2PYALL

Description: Horn - RH

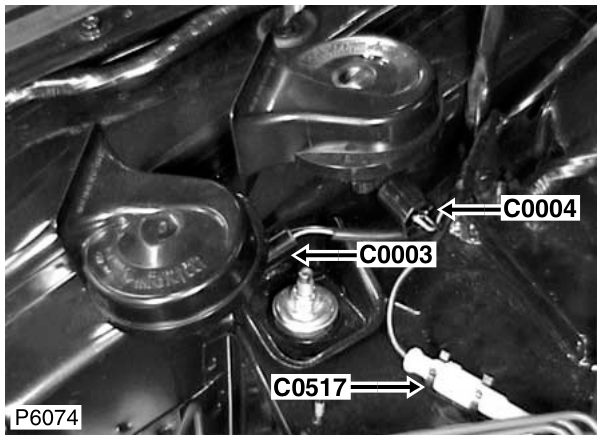

Location: Under bonnet, RH side

Description: horn - rh – Location: Under bonnet, RH side

Colour: BLACK Gender: Female
