Colour: BLACK Gender: Female
- Make
- MG
- Model
- MGF Electrical Library
- Year
- 2001 model year on
- Section
- C0040 Diagnostic socket - LHD › Colour: BLACK Gender: Female
ConnectorsColour: BLACK Gender: Female
| Cav 1 | Col OU | Cct ALL |
| 3 | RU | ALL |
| 4 | B | ALL |
| 7 | K | 5 |
| 13 | YK | ALL |
| 16 | P | ALL |

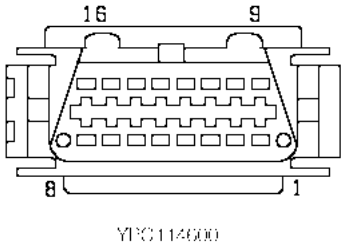

Description: Diagnostic socket - LHD Location: Behind driver side of fascia
Colour: BLACK Gender: Female
