Colour: BLACK Gender: Female
- Make
- MG
- Model
- MGF Electrical Library
- Year
- 2001 model year on
- Section
- C0114 Fuel tank › Colour: BLACK Gender: Female

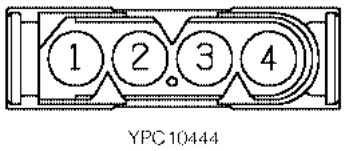

ConnectorsColour: BLACK Gender: Female
| Cav 1 | Col GB | Cct ALL |
| 2 | B | ALL |
| 3 | B | ALL |
| 4 | WP | ALL |

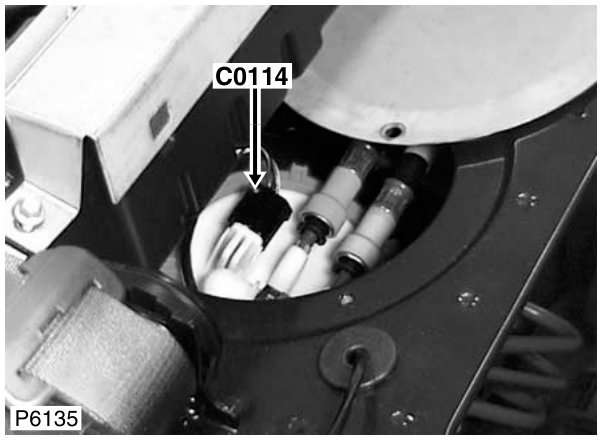

Description: Fuel tank Location: Parcel shelf - under left hand side
Colour: BLACK Gender: Female
