Colour: BLACK Gender: Female
- Make
- MG
- Model
- MGF Electrical Library
- Year
- 2001 model year on
- Section
- C0177 Idle air control valve (IACV) › Colour: BLACK Gender: Female
ConnectorsColour: BLACK Gender: Female
| Cav 1 | Col KU | Cct ALL |
| 2 | OG | ALL |
| 3 | OS | ALL |
| 4 | OU | ALL |

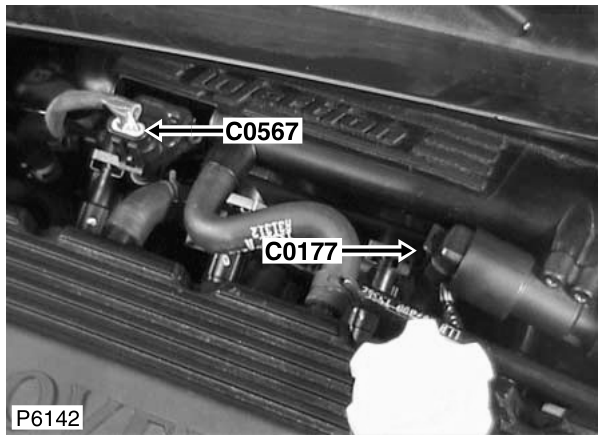

Description: Idle air control valve (IACV) Location: Top of engine
Colour: BLACK Gender: Female
