Colour: NATURAL Gender: Female

Make

MG

Model

MGF Electrical Library

Year

2001 model year on

Section

C0223 Fascia harness to main harness › Colour: NATURAL Gender: Female

ConnectorsColour: NATURAL Gender: Female

Cav 1	Col UY	Cct ALL
2	WB	ALL
3	LGY	ALL
4	WN	ALL
5	NO	ALL
6	GU	ALL
7	UR	ALL
8	GB	ALL
9	UK	ALL
10	UG	ALL
11	BR	14
12	UO	ALL
13	KU	ALL
14	GR	ALL
15	WO	ALL
16	OP	ALL
17	NU	ALL
18	WO	ALL
19	PR	ALL
20	WG	8

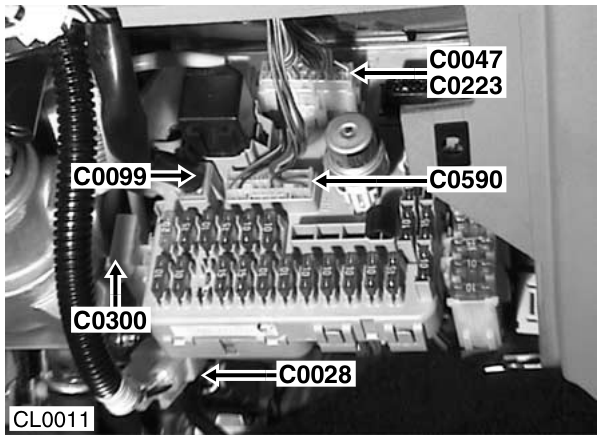

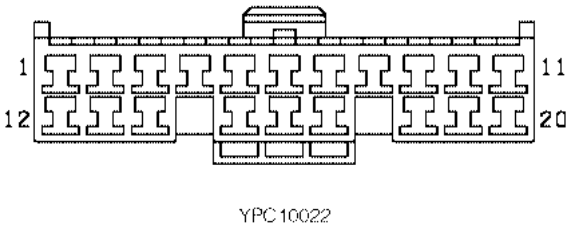

Description: Fascia harness to main harness Location: Behind driver side of fascia

Colour: NATURAL Gender: Female

05 General
