Description: Instrument Pack
- Make
- MG
- Model
- MGF Electrical Library
- Year
- 2001 model year on
- Section
- C0233 Instrument Pack › Description: Instrument Pack
ConnectorsDescription: Instrument Pack
| Cav 1 | Col GW | Cct ALL |
| 3 | RW | ALL |
| 4 | RB | ALL |
| 6 | UY | ALL |
| 7 | NO | ALL |
| 11 | LGY | ALL |
| 12 | BW | ALL |
| 13 | GB | ALL |

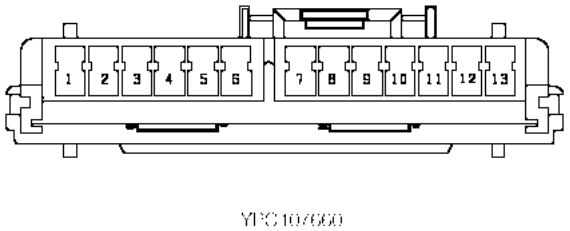

Description: Instrument Pack

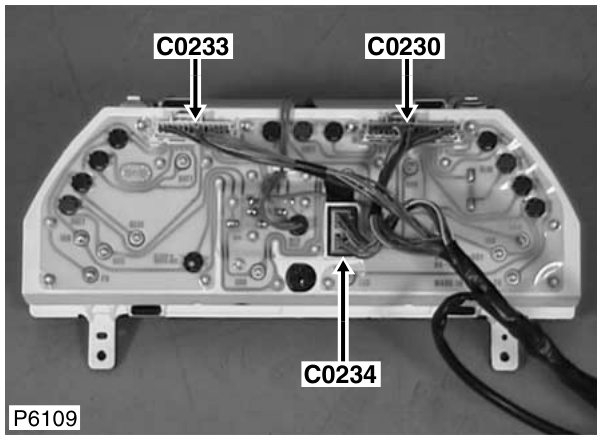

Location: Behind instrument pack
Colour: WHITE Gender: Female
