Colour: NATURAL Gender: Female
- Make
- MG
- Model
- MGF Electrical Library
- Year
- 2001 model year on
- Section
- C0245 General illumination - Automatic gearbox › Colour: NATURAL Gender: Female
ConnectorsColour: NATURAL Gender: Female
| Cav 1 | Col RB | Cct 8 |
| 2 | B | 8 |
| 3 | G | 8 |
| 4 | NW | 8 |
| 5 | NR | 8 |
| 6 | NB | 8 |
| 7 | NY | 8 |
| 8 | NG | 8 |

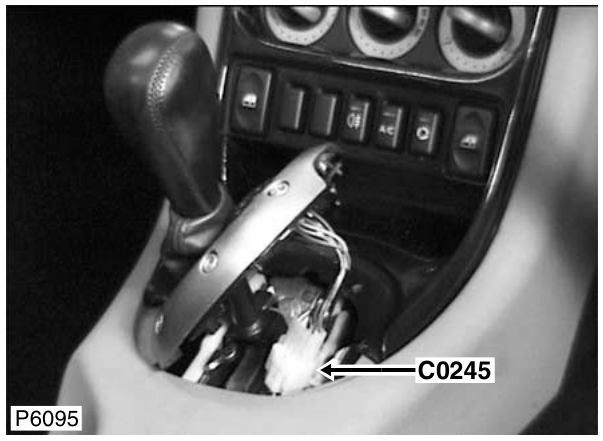

Description: General illumination - Automatic gearbox Location: Behind gear lever gaiter
Colour: NATURAL Gender: Female
