Description: Header - LHD

Make

MG

Model

MGF Electrical Library

Year

2001 model year on

Section

C0286 Header - LHD › Description: Header - LHD

ConnectorsDescription: Header - LHD

Cav 1	Col B	Cct ALL
2	B	ALL
3	B	ALL
4	B	ALL
5	B	ALL
6	B	ALL
8	B	ALL
9	BG	ALL
10	BG	ALL
11	BG	ALL
13	B	ALL
14	B	ALL
15	B	ALL
16	B	ALL
18	B	ALL
19	B	ALL
20	B	ALL

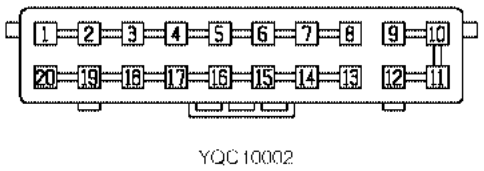

Description: Header - LHD

Location: Behind RH side of fascia

Colour: GREY Gender: Female
