Description: Header - RHD

Make

MG

Model

MGF Electrical Library

Year

2001 model year on

Section

C0288 Header - RHD › Description: Header - RHD

ConnectorsDescription: Header - RHD

Cav 1	Col LG	Cct 7
2	LG	7
3	LG	ALL
4	LG	7
5	PB	ALL
6	PB	ALL
7	PB	ALL
8	UG	ALL
9	UG	ALL
10	UG	ALL
11	R	ALL
12	R	ALL
13	R	ALL
14	LGN	ALL
15	LGN	ALL
16	LGN	ALL
17	PY	ALL
18	PY	ALL
19	PY	ALL

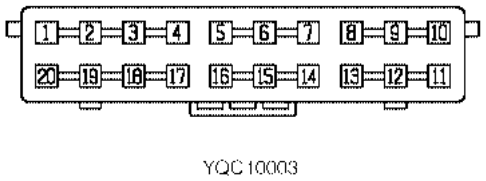

Description: Header - RHD

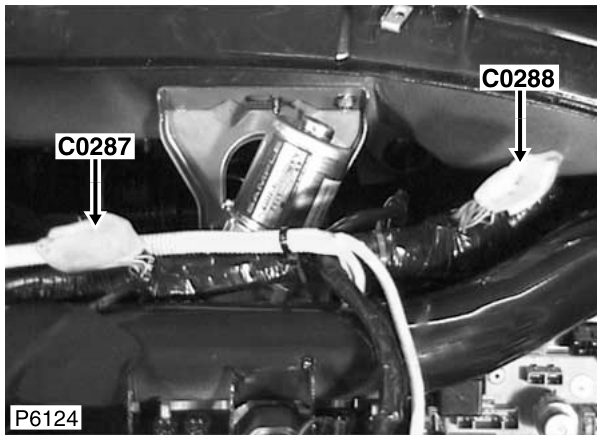

Location: Behind RH side of fascia

Colour: ORANGE Gender: Female

05 General
