Colour: NATURAL Gender: Female

Make

MG

Model

MGF Electrical Library

Year

2001 model year on

Section

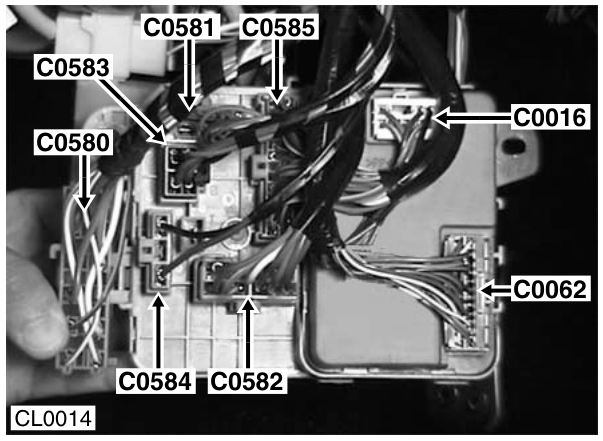

C0585 Fuse box - Passenger compartment › Colour: NATURAL Gender: Female

ConnectorsColour: NATURAL Gender: Female

Cav 1	Col UB	Cct ALL
2	GS	ALL
3	GW	ALL
4	GR	ALL
5	BW	ALL
6	UR	ALL
8	RO	ALL
9	LGW	ALL
10	G	ALL
11	SG	ALL
12	RB	ALL
13	UK	ALL
14	LGK	ALL
15	LGN	ALL
16	NY	ALL
17	P	ALL
18	LG	ALL
20	W	ALL
21	PU	ALL
22	LGS	ALL
23	GY	ALL
24	NY	ALL

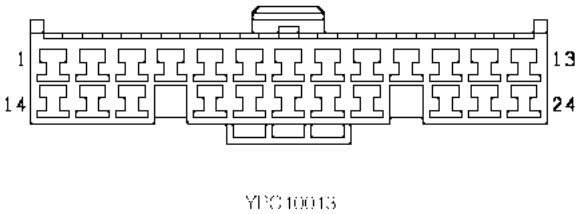

Description: Fuse box - Passenger compartment Location: Behind driver side of fascia

Colour: NATURAL Gender: Female

05 General
