Description: Headlamp - RH
- Make
- MG
- Model
- MGF Electrical Library
- Year
- up to 2001 model year
- Section
- C0011 Headlamp - RH › Description: Headlamp - RH

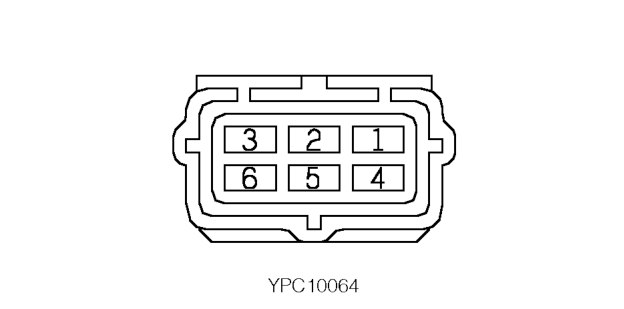

ConnectorsDescription: Headlamp - RH
| Cav 2 | Col UB | Cct ALL |
| 4 | UG | ALL |
| 5 | RO | ALL |
| 6 | B | ALL |
Description: Headlamp - RH

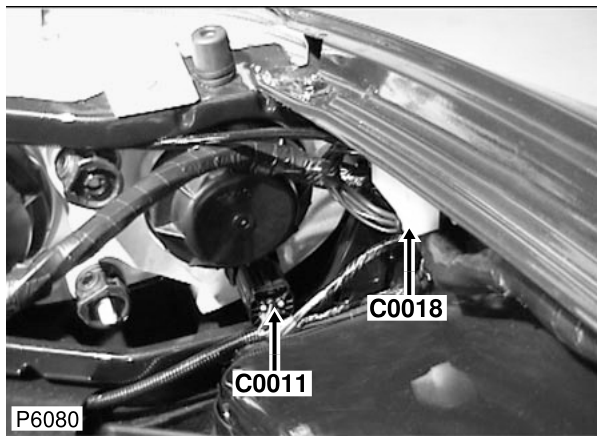

Location: Under bonnet, RH side
Colour: BLACK Gender: Female
