Colour: NATURAL Gender: Male
- Make
- MG
- Model
- MGF Electrical Library
- Year
- up to 2001 model year
- Section
- C0015 Heater harness to main harness › Colour: NATURAL Gender: Male

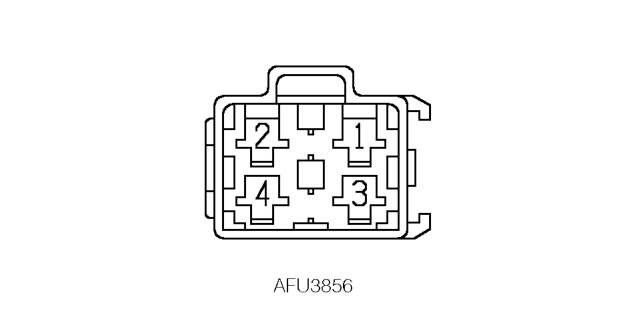

ConnectorsColour: NATURAL Gender: Male
| Cav 1 | Col RB | Cct ALL |
| 2 | LGP | ALL |
| 4 | B | ALL |

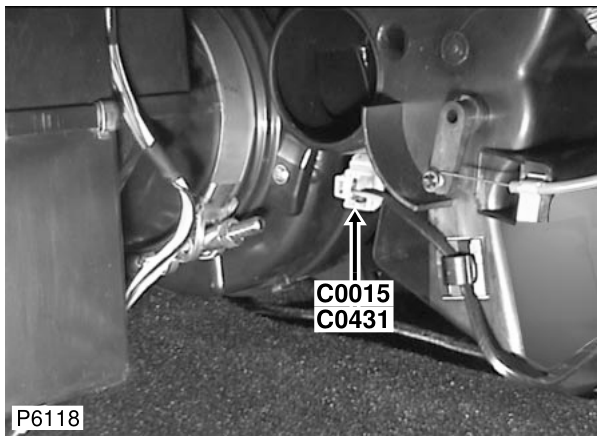

Description: Heater harness to main harness Location: Under LH side of fascia
Colour: NATURAL Gender: Male
