Description: Header - Earth
- Make
- MG
- Model
- MGF Electrical Library
- Year
- up to 2001 model year
- Section
- C0017 Header - Earth › Description: Header - Earth
ConnectorsDescription: Header - Earth
| Cav 1 | Col B | Cct ALL |
| 2 | B | ALL |
| 3 | B | ALL |
| 4 | B | ALL |
| 5 | B | ALL |
| 6 | B | ALL |

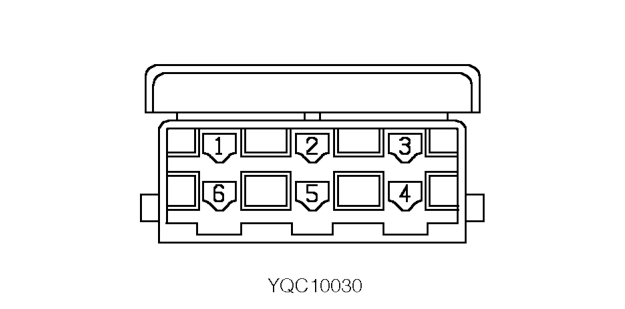

Description: Header - Earth

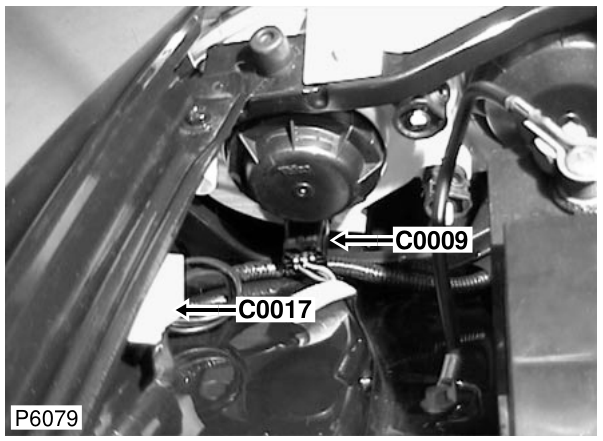

Location: Under bonnet, LH side
Colour: NATURAL Gender: Female
