Description: Switch - Ignition - RHD
- Make
- MG
- Model
- MGF Electrical Library
- Year
- up to 2001 model year
- Section
- C0028 Switch - Ignition - RHD › Description: Switch - Ignition - RHD

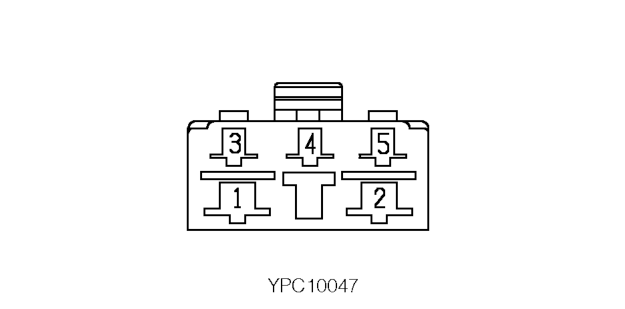

ConnectorsDescription: Switch - Ignition - RHD
| Cav 1 | Col NP | Cct ALL |
| 2 | NW | ALL |
| 3 | WR | ALL |
| 4 | WLG | ALL |
| 5 | PR | ALL |
Description: Switch - Ignition - RHD

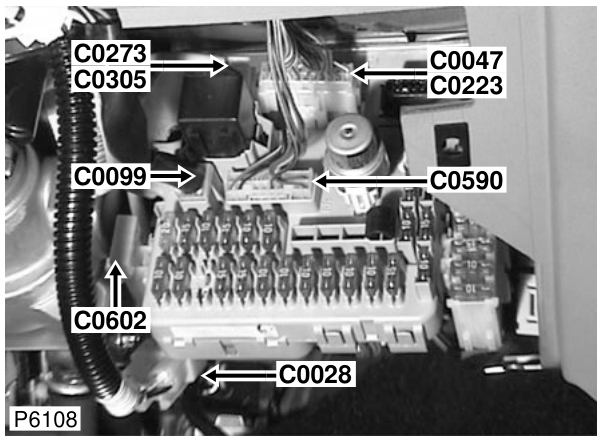

Location: Behind driver side of fascia
Colour: NATURAL Gender: Female
