Description: Switch - Wiper - Front
- Make
- MG
- Model
- MGF Electrical Library
- Year
- up to 2001 model year
- Section
- C0035 Switch - Wiper - Front › Description: Switch - Wiper - Front

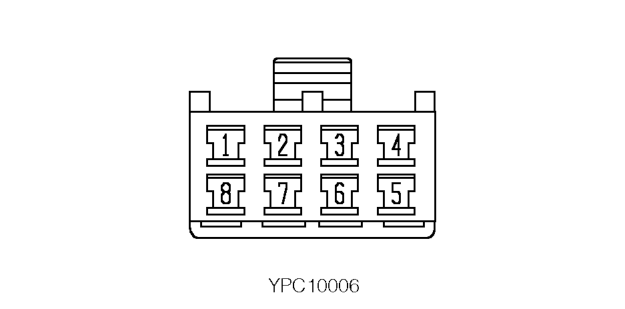

ConnectorsDescription: Switch - Wiper - Front
| Cav 1 | Col GS | Cct ALL |
| 2 | LGG | ALL |
| 3 | ULG | ALL |
| 4 | RLG | ALL |
| 5 | B | ALL |
| 7 | LGP | ALL |
| 8 | LGB | ALL |
Description: Switch - Wiper - Front

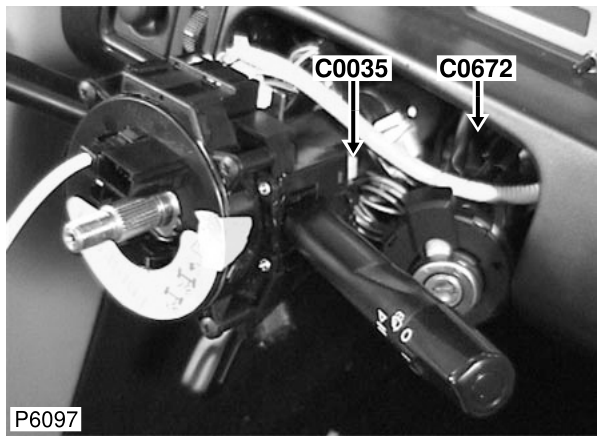

Location: RH side of steering column
Colour: NATURAL Gender: Female
