Description: Switch - Lighting
- Make
- MG
- Model
- MGF Electrical Library
- Year
- up to 2001 model year
- Section
- C0041 Switch - Lighting › Description: Switch - Lighting
ConnectorsDescription: Switch - Lighting
| Cav 1 | Col UK | Cct ALL |
| 3 | N | ALL |
| 4 | R | ALL |
| 5 | UW | ALL |
| 6 | N | ALL |

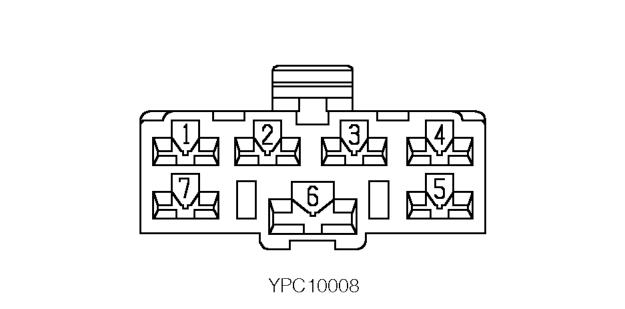

Description: Switch - Lighting

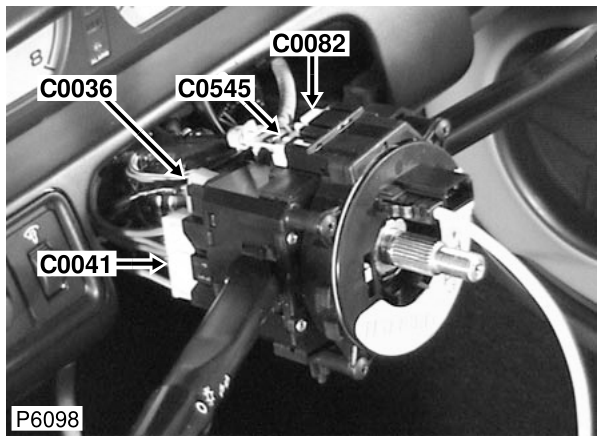

Location: LH side of steering column
Colour: NATURAL Gender: Female
