Colour: NATURAL Gender: Female
- Make
- MG
- Model
- MGF Electrical Library
- Year
- up to 2001 model year
- Section
- C0096 Switch - Hazard warning › Colour: NATURAL Gender: Female

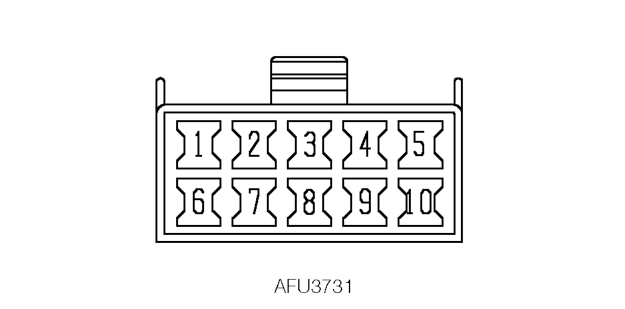

ConnectorsColour: NATURAL Gender: Female
| Cav 1 | Col G | Cct ALL |
| 2 | NO | ALL |
| 3 | LGK | ALL |
| 4 | RB | ALL |
| 5 | B | ALL |
| 6 | LGN | ALL |
| 7 | GR | ALL |
| 8 | LGY | ALL |
| 9 | GW | ALL |
| 10 | Y | ALL |

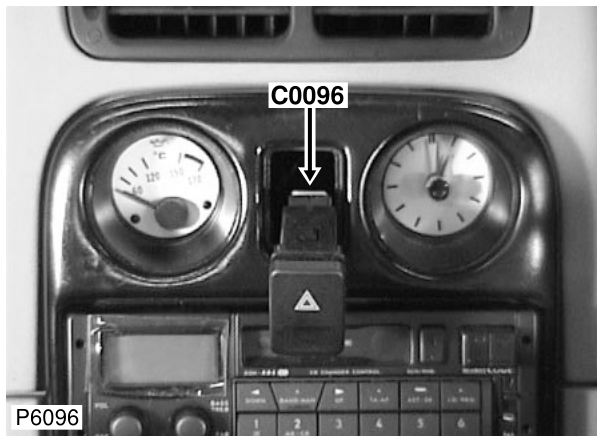

Description: Switch - Hazard warning Location: Beneath front console
Colour: NATURAL Gender: Female
