Description: Lamp - Tail - RH
- Make
- MG
- Model
- MGF Electrical Library
- Year
- up to 2001 model year
- Section
- C0125 Lamp - Tail - RH › Description: Lamp - Tail - RH

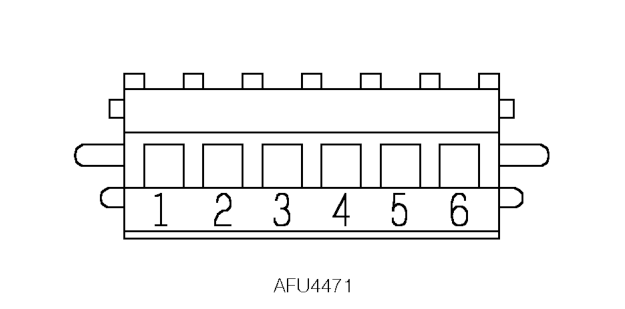

ConnectorsDescription: Lamp - Tail - RH
| Cav 1 | Col GP | Cct ALL |
| 2 | GW | ALL |
| 3 | B | ALL |
| 4 | RO | ALL |
| 5 | UY | ALL |
| 6 | GN | ALL |
Description: Lamp - Tail - RH

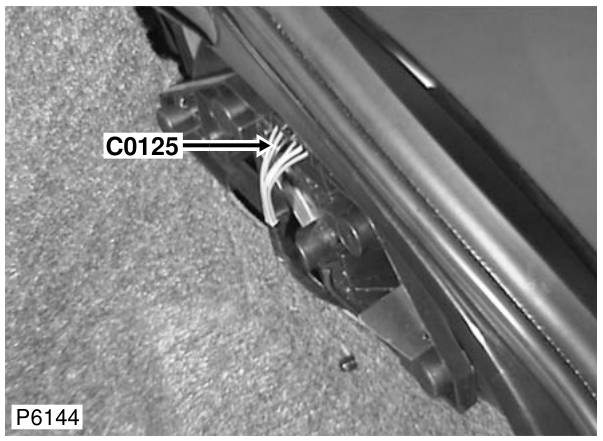

Location: Luggage compartment - RH side
Colour: BLACK Gender: Female
