Colour: BLACK Gender: Female
- Make
- MG
- Model
- MGF Electrical Library
- Year
- up to 2001 model year
- Section
- C0154 Relay module › Colour: BLACK Gender: Female

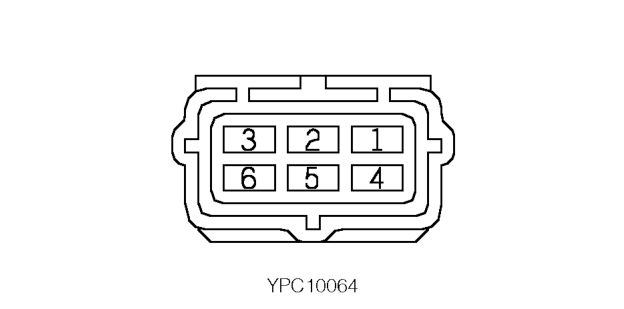

ConnectorsColour: BLACK Gender: Female
| Cav 1 | Col BP | Cct ALL |
| 2 | W | ALL |
| 3 | WK | ALL |
| 4 | BR | 8 |
| 4 | BW | ALL |
| 5 | BG | ALL |
| 6 | WR | ALL |

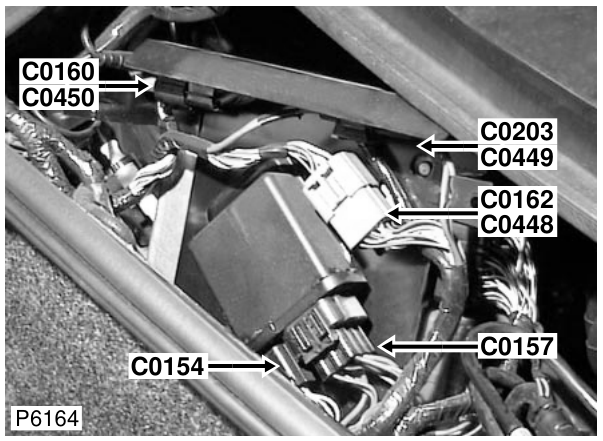

Description: Relay module Location: LH side of engine compartment
Colour: BLACK Gender: Female
