Colour: BLACK Gender: Female
- Make
- MG
- Model
- MGF Electrical Library
- Year
- up to 2001 model year
- Section
- C0157 Relay module - K1.8 VVC › Colour: BLACK Gender: Female
ConnectorsColour: BLACK Gender: Female
| Cav 1 | Col NS | Cct ALL |
| 2 | UR | ALL |
| 3 | NK | ALL |
| 4 | WP | ALL |
| 5 | NR | ALL |
| 6 | N | ALL |
| 7 | N | ALL |
| 8 | NK | ALL |

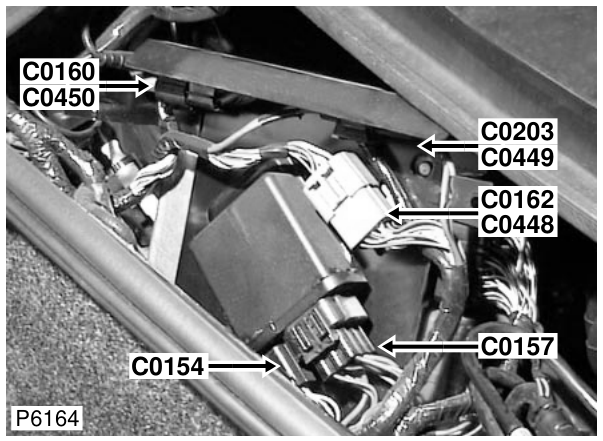

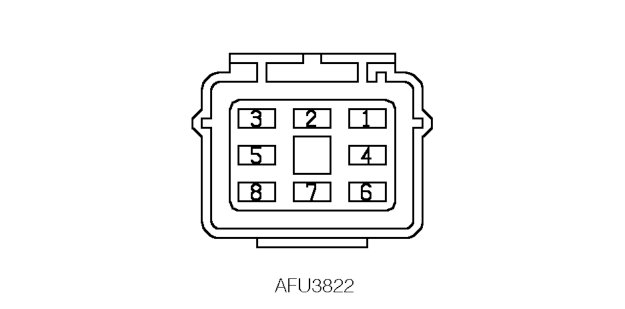

Description: Relay module - K1.8 VVC Location: LH side of engine compartment
Colour: BLACK Gender: Female
