Make

MG

Model

MGF Electrical Library

Year

up to 2001 model year

Section

C0159 Engine control module (ECM) - K1.8 › No photo location

ConnectorsNo photo location

Cav 2	Col KU	Cct ALL
3	OS	ALL
4	WK	ALL
5	UY	19
6	US	ALL
7	S	ALL
8	YG	ALL
9	YP	ALL
10	K	ALL
11	W	ALL
12	WB	ALL
13	YR	ALL
15	UG	19
16	GB	ALL
17	GR	ALL
18	LGS	ALL
19	UB	19
20	BP	ALL
21	YO	ALL
22	OG	ALL
23	YR	ALL
24	YN	ALL
25	WB	ALL
26	NB	ALL
27	OU	ALL
28	NK	ALL
29	B	ALL
30	KB	ALL
31	UP	ALL
32	WU	ALL
33	KG	ALL
34	SW	ALL
35	UR	19
36	BG	ALL

NO PHOTO LOCATION

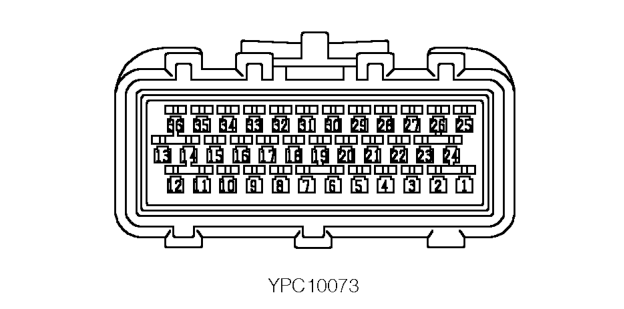

Description: Engine control module (ECM) - K1.8 Location: Front LH side of engine compartment

Colour: BLACK Gender: Female
