Colour: BLACK Gender: Female
- Make
- MG
- Model
- MGF Electrical Library
- Year
- up to 2001 model year
- Section
- C0164 Sensor - Heated oxygen (HO2S) › Colour: BLACK Gender: Female
ConnectorsColour: BLACK Gender: Female
| Cav 1 | Col GY | Cct 8 |
| 1 | S | ALL |
| 2 | GN | 8 |
| 2 | LGS | ALL |
| 3 | BU | 8 |
| 3 | B | ALL |
| 4 | NK | 8 |
| 4 | UR | 20 |

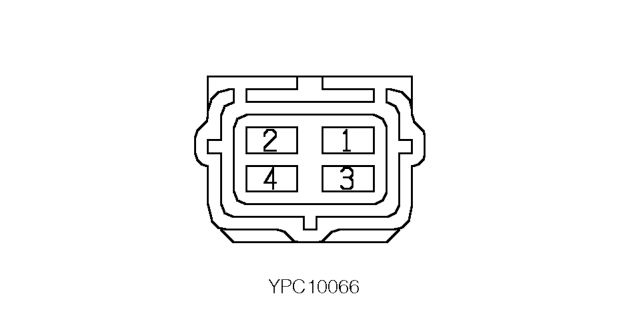

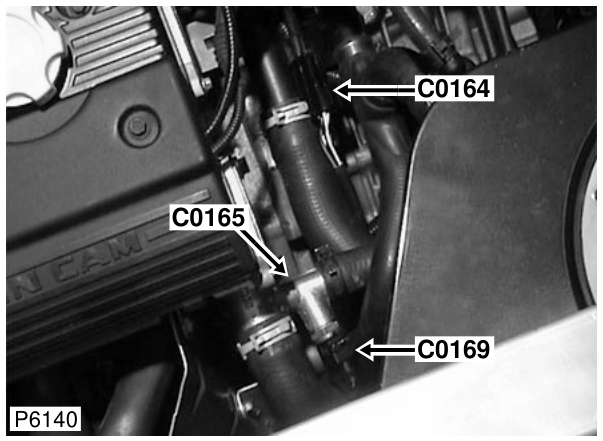

Description: Sensor - Heated oxygen (HO2S) Location: Top of engine
Colour: BLACK Gender: Female
