Colour: NATURAL Gender: Female
- Make
- MG
- Model
- MGF Electrical Library
- Year
- up to 2001 model year
- Section
- C0201 Dimmer - Instrument illumination › Colour: NATURAL Gender: Female
ConnectorsColour: NATURAL Gender: Female
| Cav 1 | Col RW | Cct ALL |
| 2 | B | ALL |
| 3 | RB | ALL |

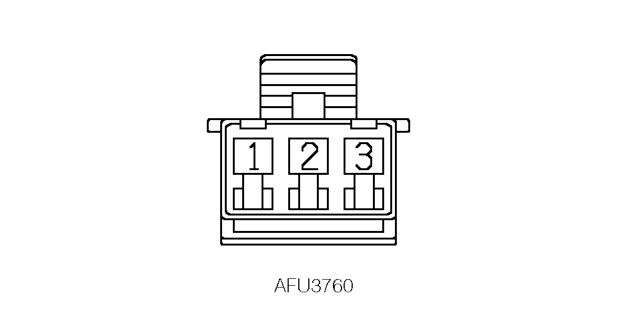

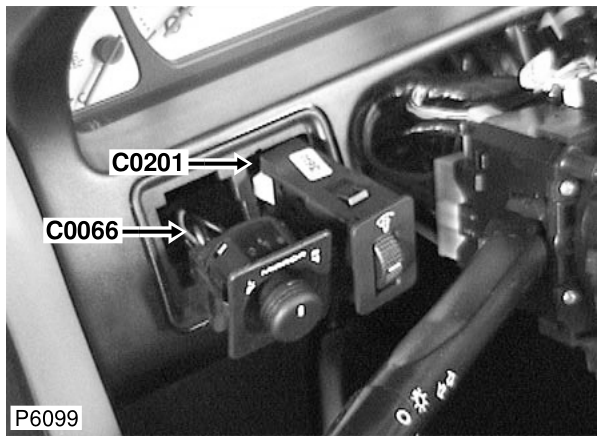

Description: Dimmer - Instrument illumination Location: Adjacent steering column
Colour: NATURAL Gender: Female
