Colour: NATURAL Gender: Female
- Make
- MG
- Model
- MGF Electrical Library
- Year
- up to 2001 model year
- Section
- C0223 Fascia harness to main harness › Colour: NATURAL Gender: Female

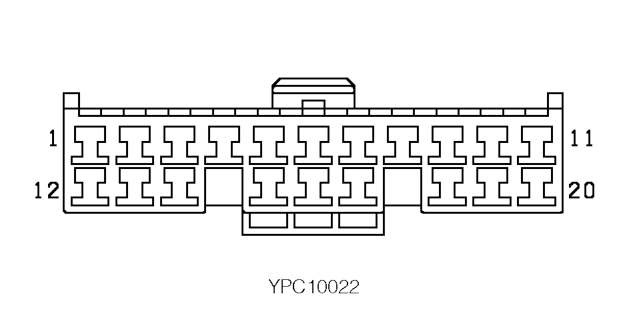

ConnectorsColour: NATURAL Gender: Female
| Cav 1 | Col UY | Cct ALL |
| 2 | WB | ALL |
| 3 | LGY | ALL |
| 4 | WN | ALL |
| 5 | NO | ALL |
| 6 | GU | ALL |
| 7 | UR | ALL |
| 8 | GB | ALL |
| 9 | UK | ALL |
| 10 | UG | ALL |
| 11 | BR | 14 |
| 12 | UO | ALL |
| 13 | KU | ALL |
| 14 | GR | ALL |
| 15 | WO | ALL |
| 16 | OP | ALL |
| 17 | NU | ALL |
| 18 | WO | ALL |
| 19 | PR | ALL |
| 20 | WG | 8 |

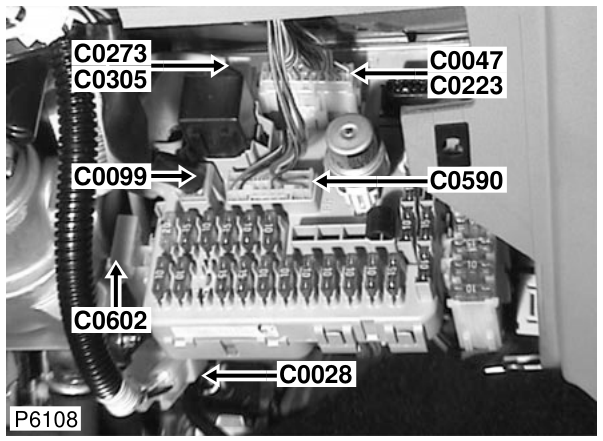

Description: Fascia harness to main harness Location: Behind driver side of fascia
Colour: NATURAL Gender: Female
