Description: Instrument Pack
- Make
- MG
- Model
- MGF Electrical Library
- Year
- up to 2001 model year
- Section
- C0230 Instrument Pack › Description: Instrument Pack
ConnectorsDescription: Instrument Pack
| Cav 1 | Col GU | Cct ALL |
| 2 | WN | ALL |
| 5 | NY | ALL |
| 6 | UO | ALL |
| 7 | G | ALL |
| 9 | B | ALL |
| 11 | WB | ALL |
| 15 | UG | ALL |
| 16 | GR | ALL |

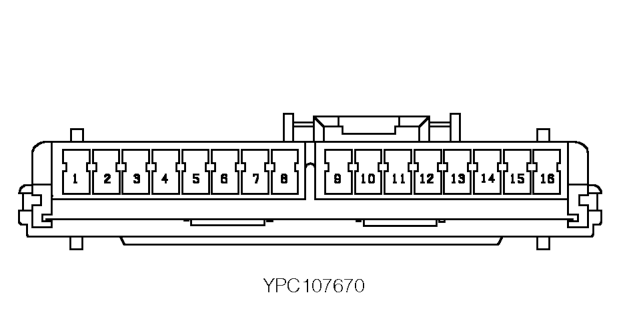

Description: Instrument Pack

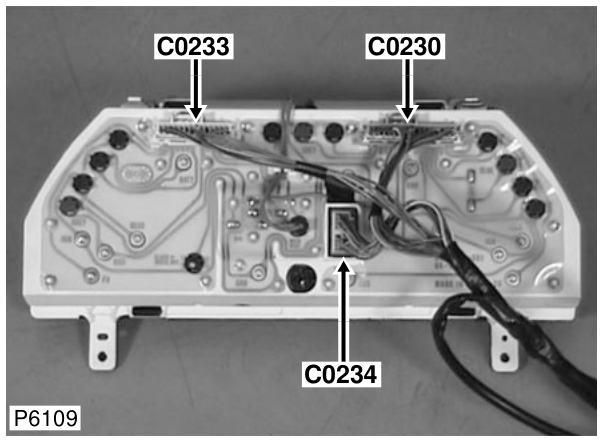

Location: Behind instrument pack
Colour: LIGHT GREY Gender: Female
