Description: Instrument Pack
- Make
- MG
- Model
- MGF Electrical Library
- Year
- up to 2001 model year
- Section
- C0234 Instrument Pack › Description: Instrument Pack
ConnectorsDescription: Instrument Pack
| Cav 1 | Col WG | Cct 8 |
| 2 | WO | ALL |
| 5 | UK | ALL |
| 7 | UR | ALL |
| 8 | OP | ALL |
| 9 | NU | ALL |
| 10 | BR | 14 |
| 11 | KU | ALL |
| 12 | GR | ALL |
| 13 | PR | ALL |

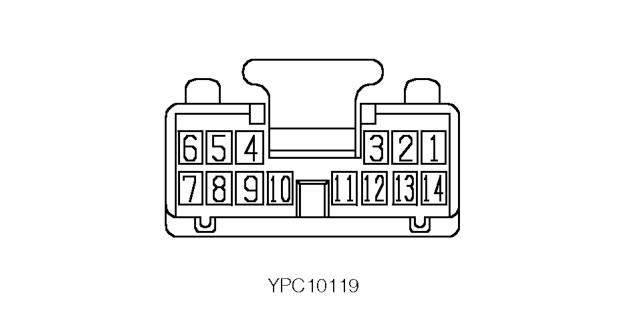

Description: Instrument Pack

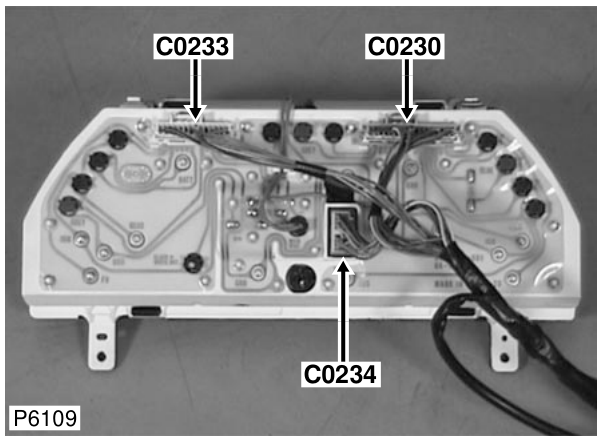

Location: Behind instrument pack
Colour: YELLOW Gender: Female
