Description: DCU - Airbag
- Make
- MG
- Model
- MGF Electrical Library
- Year
- up to 2001 model year
- Section
- C0256 DCU - Airbag › Description: DCU - Airbag

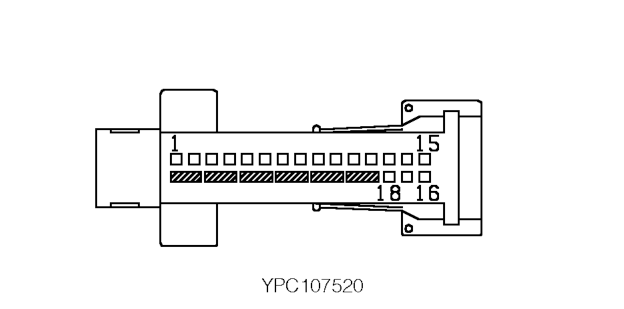

ConnectorsDescription: DCU - Airbag
| Cav 1 | Col B | Cct ALL |
| 2 | OP | ALL |
| 3 | O | ALL |
| 4 | OU | ALL |
| 5 | N | ALL |
| 6 | NR | ALL |
| 7 | N | ALL |
| 8 | U | ALL |
| 9 | N | ALL |
| 10 | U | ALL |
| 11 | Y | ALL |
| 12 | R | ALL |
| 14 | YK | ALL |
| 15 | G | ALL |
Description: DCU - Airbag

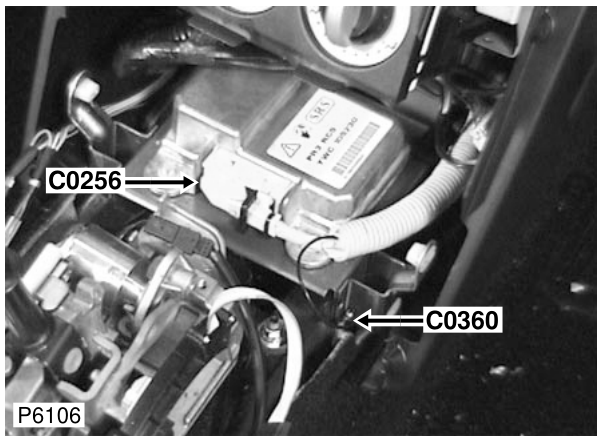

Location: Behind centre console
Colour: YELLOW Gender: Female
