Description: Switch - Trinary
- Make
- MG
- Model
- MGF Electrical Library
- Year
- up to 2001 model year
- Section
- C0279 Switch - Trinary › Description: Switch - Trinary

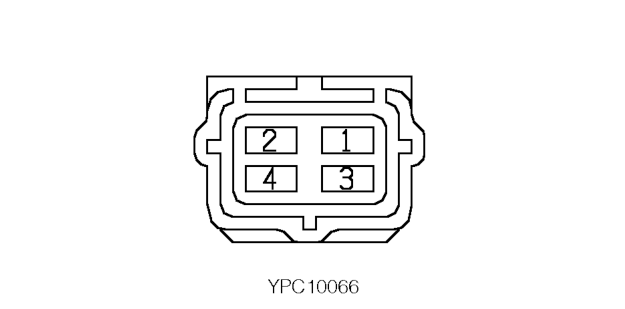

ConnectorsDescription: Switch - Trinary
| Cav 1 | Col SK | Cct 2 |
| 2 | UR | 2 |
| 3 | B | 2 |
| 4 | UG | 2 |
Description: Switch - Trinary

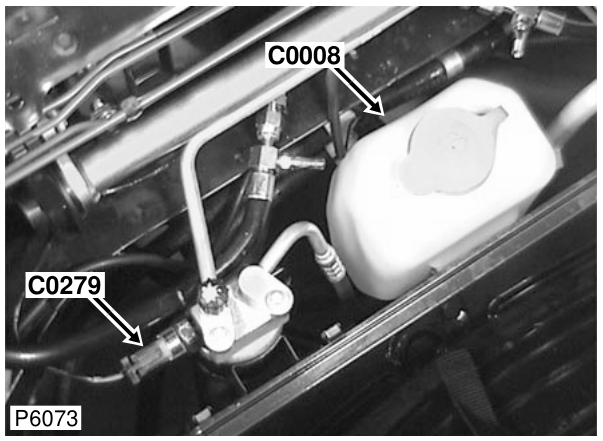

Location: Under bonnet behind closing panel - centre
Colour: BLACK Gender: Female
