Description: Header - RHD

Make

MG

Model

MGF Electrical Library

Year

up to 2001 model year

Section

C0287 Header - RHD › Description: Header - RHD

ConnectorsDescription: Header - RHD

Cav 1	Col GW	Cct ALL
2	GW	ALL
3	GW	ALL
4	GW	ALL
5	GW	ALL
6	GW	ALL
7	PS	ALL
8	PS	ALL
9	PS	ALL
12	WN	ALL
13	WN	ALL
14	WN	ALL
15	GR	ALL
16	GR	ALL
17	GR	ALL
18	GR	ALL
19	GR	ALL
20	GR	ALL

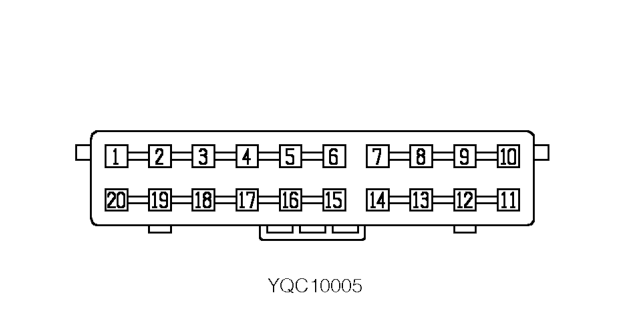

Description: Header - RHD

Location: Behind RH side of fascia

Colour: BLUE Gender: Female
