Description: Header - LHD
- Make
- MG
- Model
- MGF Electrical Library
- Year
- up to 2001 model year
- Section
- C0288 Header - LHD › Description: Header - LHD

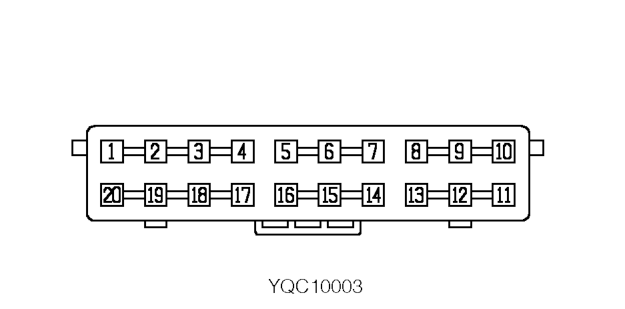

ConnectorsDescription: Header - LHD
| Cav 1 | Col LG | Cct 7 |
| 2 | LG | 7 |
| 3 | LG | ALL |
| 4 | LG | 7 |
| 5 | PB | ALL |
| 6 | PB | ALL |
| 7 | PB | ALL |
| 8 | UG | ALL |
| 9 | UG | ALL |
| 10 | UG | ALL |
| 11 | R | ALL |
| 12 | R | ALL |
| 13 | R | ALL |
| 14 | LGN | ALL |
| 15 | LGN | ALL |
| 16 | LGN | ALL |
| 17 | PY | ALL |
| 18 | PY | ALL |
| 19 | PY | ALL |
Description: Header - LHD

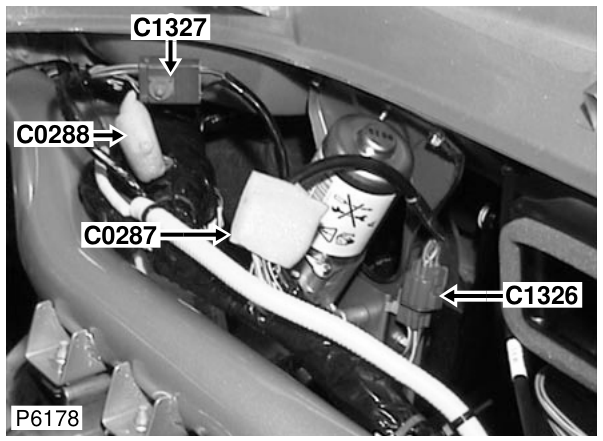

Location: Behind LH side of fascia
Colour: ORANGE Gender: Female
