Colour: BLUE Gender: Female
- Make
- MG
- Model
- MGF Electrical Library
- Year
- up to 2001 model year
- Section
- C0448 Main harness to engine harness › Colour: BLUE Gender: Female

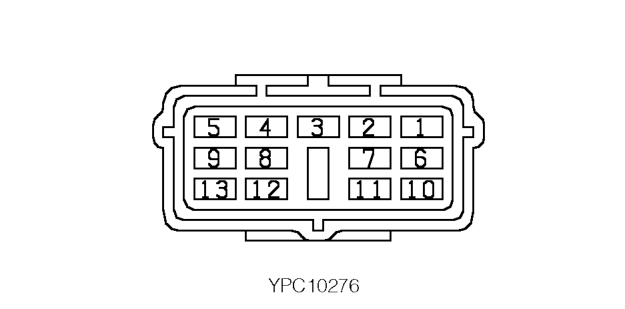

ConnectorsColour: BLUE Gender: Female
| Cav 1 | Col W | Cct ALL |
| 2 | WB | 5 |
| 3 | WR | ALL |
| 4 | NS | ALL |
| 5 | GY | ALL |
| 6 | GN | ALL |
| 7 | NY | ALL |
| 8 | NB | ALL |
| 9 | GU | ALL |
| 10 | BW | ALL |
| 11 | YR | ALL |
| 12 | GR | ALL |
| 13 | US | ALL |

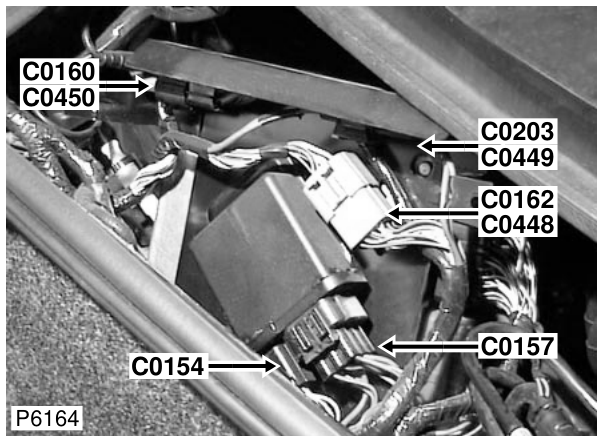

Description: Main harness to engine harness Location: LH side of engine compartment
Colour: BLUE Gender: Female
