MG MGF Electrical Library (up to 2001 model year)05 · Connectors
05 · General

Description: Speakers - High Range - LHD

Make
MG
Model
MGF Electrical Library
Year
up to 2001 model year
Section
C0531 Speakers - High Range - LHD › Description: Speakers - High Range - LHD
ConnectorsDescription: Speakers - High Range - LHD
Diagram
Cav 1Col YKCct ALL
3YBALL

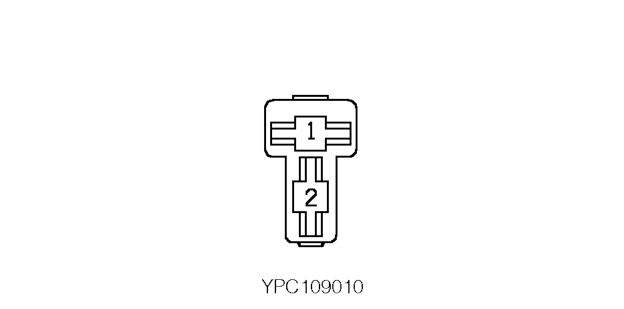

Description: Speakers - High Range - LHD

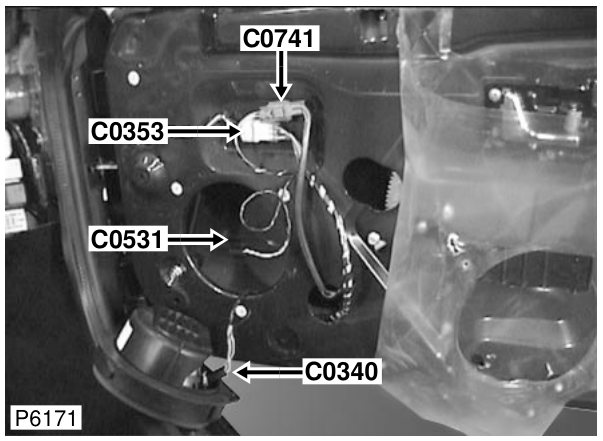

Location: Behind RH front door trim panel

Description: speakers - high range - lhd – Location: Behind RH front door trim panel

Colour: BLACK Gender: Female
