Colour: NATURAL Gender: Female
- Make
- MG
- Model
- MGF Electrical Library
- Year
- up to 2001 model year
- Section

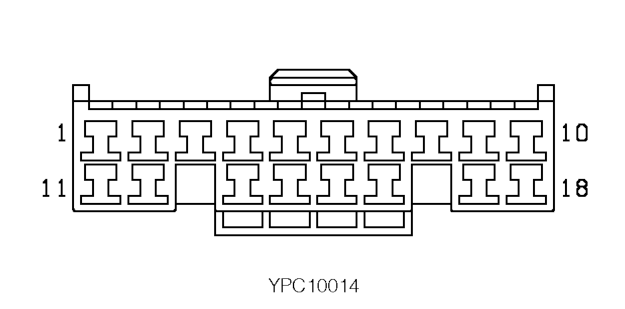

- C0590 Fuse box - Passenger compartment › Colour: NATURAL Gender: Female
ConnectorsColour: NATURAL Gender: Female
| Cav 1 | Col G | Cct ALL |
| 6 | NY | ALL |
| 9 | B | ALL |
| 11 | G | ALL |
| 13 | GR | ALL |
| 14 | RB | ALL |
| 17 | BW | ALL |
| 18 | GW | ALL |

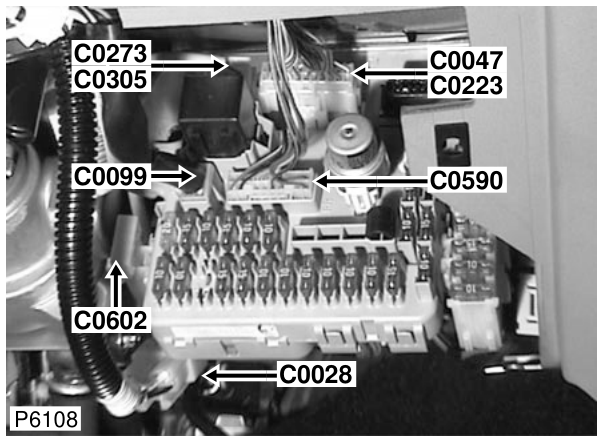

Description: Fuse box - Passenger compartment Location: Behind driver side of fascia
Colour: NATURAL Gender: Female
