Colour: GREEN Gender: Female
- Make
- MG
- Model
- MGF Electrical Library
- Year
- up to 2001 model year
- Section
- C0750 Switch - Fresh / recirculated air › Colour: GREEN Gender: Female
ConnectorsColour: GREEN Gender: Female
| Cav 1 | Col B | Cct ALL |
| 2 | RB | ALL |
| 3 | Y | ALL |
| 4 | K | ALL |
| 5 | LGS | ALL |

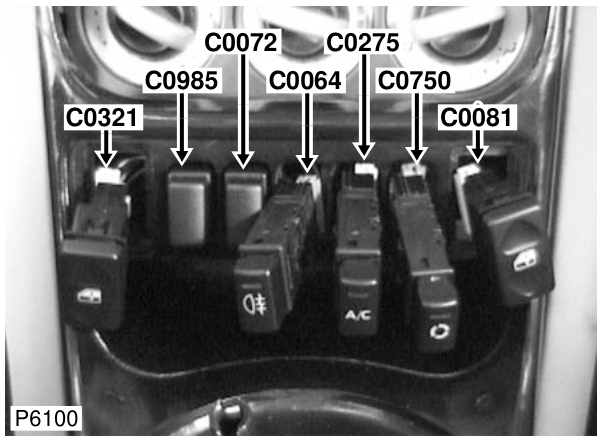

Description: Switch - Fresh / recirculated air Location: Beneath front console
Colour: GREEN Gender: Female
