Colour: BLACK Gender: Female
- Make
- MG
- Model
- MGF Electrical Library
- Year
- up to 2001 model year
- Section
- C1666 Sensor - Oil temperature › Colour: BLACK Gender: Female

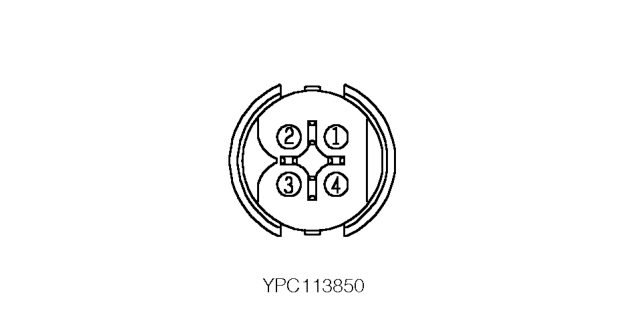

ConnectorsColour: BLACK Gender: Female
| Cav 1 | Col NU | Cct ALL |
| 2 | B | ALL |
| 3 | U | 8 |
| 4 | GO | 8 |

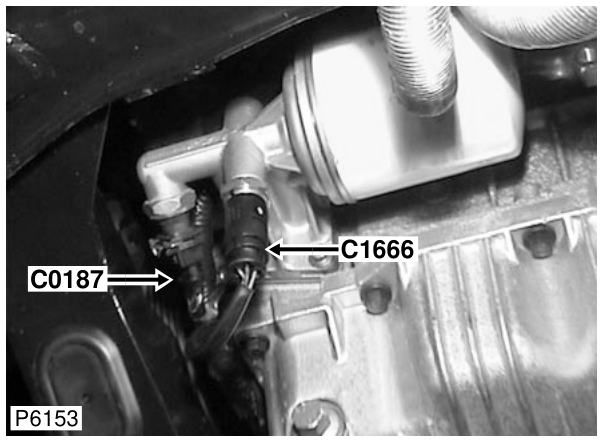

Description: Sensor - Oil temperature Location: Bottom of engine - RH side
Colour: BLACK Gender: Female
